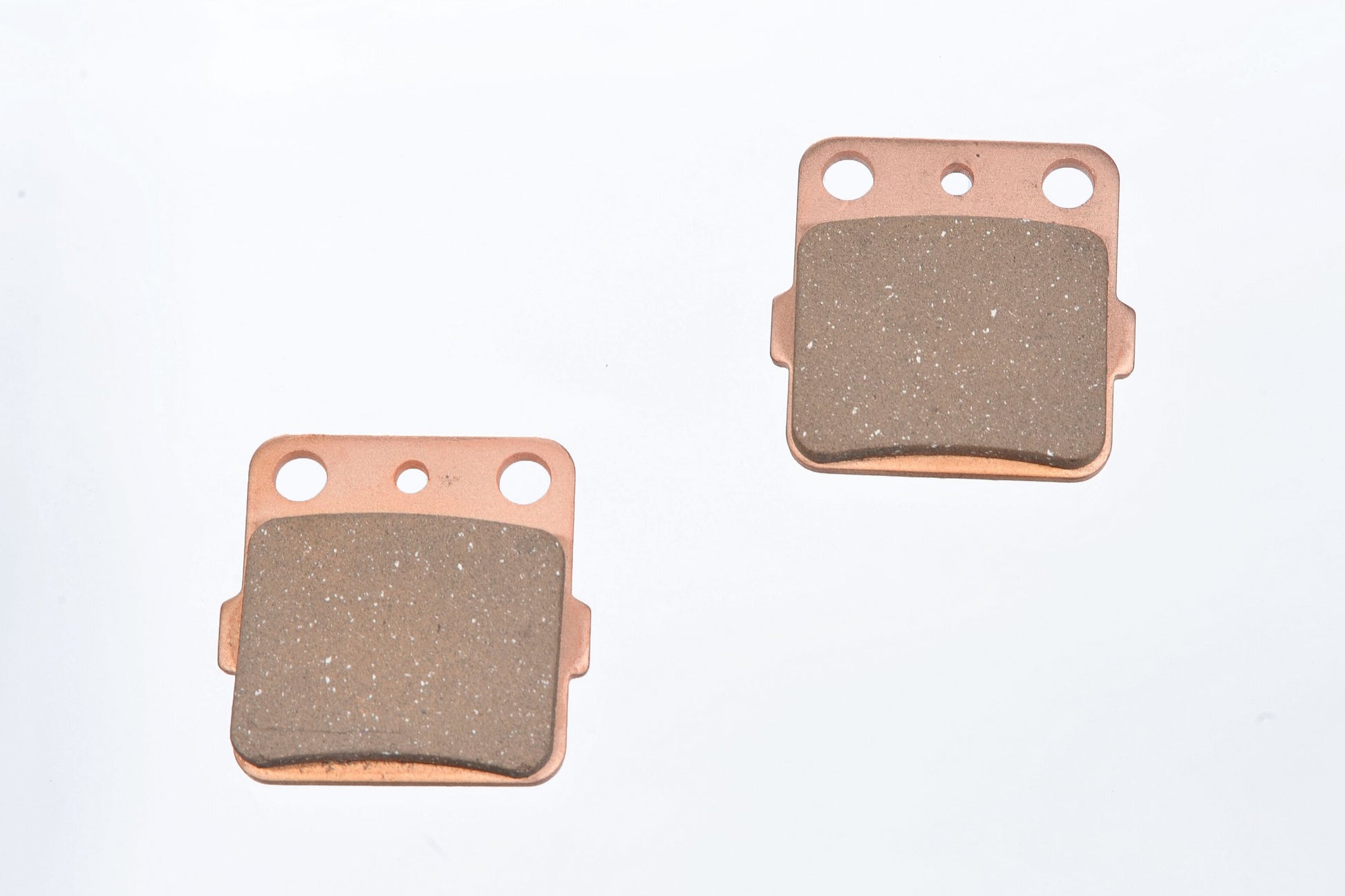

Goldfren S33 Front Right Brake Pads For Honda TRX 420 Fourtrax Rancher 2009-2011

The S33 (offroad) sintered compound is optimal for ambitious first-class pro level off-road riders who demand the ultimate edge on their racing with absolute great stopping power and exceptional brake pad longevity.

The S33 (offroad) series is currently used in motocross world championship races.

The S33 (offroad) series is designed for low abrasive interaction the rotor while providing high braking power, long life and self-cleaning capabilities necessary for off-road riding conditions. Additionally, the S33 rear pads feature a stainless-steel heat shield for thermal isolation.

The S33 (offroad) compound contains all-metal friction materials and finer metal friction admixtures evenly distributed in the base structure designed to achieve the greatest friction properties possible under heavy conditions.

FEATURES:

High static friction coefficient across the whole scope of operating condition



Low aggressiveness in contact with the brake disc and sufficient resistance to abrasion



Self cleaning capability



Thermal stability up to 600 Degrees Celsius, and even up to 850 Degrees Celsius over a short term



Long service life



Environment-friendly



Manufactured by means of a progressive method of powder metallurgy



Stainless steel heat shield for thermal isolation on the rear pads



The metal-ceramic material can undergo friction in both wet and dry conditions



S33 has gradually gained a leading position amongst other sintered brake pads

RANGE OF APPLICATION:

Ideal choice for world off-road championships
Also used on high performance street bikes
On off-road bikes, ATV and street bikes
Excellent brake power and service life
This material is used in world championship races by motocross and enduro riders
It can be used on both front a rear brakes, it's mainly for the rear brake



Specific pressure: p< 5 Mpa



Sliding speed: v< 20 m/s



Max. stable temperature: 600 Degrees Celsius



Short-term temperature: 850 Degrees Celsius



Counter-surfaces: steel disks

GENERAL CHARACTERISTICS ABOUT GOLDFREN BRAKE PADS

All the GOLDfren brake pads are made with sintered metal-ceramic and ceramic-carbon friction materials



Sintered brake pads offer no brake fade when operating at high temperatures and in wet conditions



Sintered brake pads provide superior stopping power and longer life compared to other brake pad types such as: carbon organic, organic, or semi-metallic organic



Sintered brake pads are made by fusing together metallic particles under high temperatures and pressure using a pressed powdered-metal technology



GOLDfren is a pioneer insintering, using advanced and progressive powder metallurgy methods



Designed for both wet and dry applications



Sintered brake pads deliver exceptional braking performance and durability under the most demanding conditions



All the materials used are lead and asbestos free



GOLDfren is the brand for high-end quality aftermarket performance disc brakes



Compound series  available are: AD, S3, K1, K5, K5-LX, S33



Application of each compound is based on our brake pad application chart or the rider's preference and riding style



he sintered friction material is soldered to the copper lined steel backing plate, hence, separation (which can happen with organic pads) is virtually impossible

NOTES:

Replacement of brake pads should be done in dry clean conditions and preferably by a professionally qualified person. If the friction material comes in contact with oil or brake fluid and the liquid soaks into the pores of the friction material, a catastrophic decrease in friction coefficient (braking performance) could occur



Please beware that sintered brake pads require a bed-in period after installation. Allow some extra braking distance during the bed-in period. For more information on bedding your brake pads



Braking performance is significantly influenced by the quality of the braking surface of the Disc rotor; also by the age and quality of the brake fluid, and by the correct choice of complementary type of brake pad



To achieve the perfect brake effect, we recommend using GOLDfren brake pads in conjunction with GOLDfren rotors and brake lines because of its excellent quality common friction properties



Brake with the products developed by GOLDfren

CAUTION !!

Braking effects are affected by a range of factors:



The condition and age of the brake fluid; the condition of the brake caliper; the condition and quality of the brake lines; the condition of the brake disc.



Honda CR 80 R 1986-1991 (Front Left Pads)



Honda CR 80 R, RB 1992-2002 (Front Left Pads)



Honda CR 85 R3/RB3 2003-2007 (Front Left Pads)



Honda CRF 150 R Small wheel (FR 17&quot;/RR 14&quot;) 2007-2019 (Front Left Pads)



Honda CRF 150 RB Big wheel (FR 19&quot;/RR 16&quot;) 2007-2019 (Front Left Pads)



Honda ATC 200 X 1983-1985 (Front Left Pads)



Honda ATC 200 X 1983-1985 (Rear Left Pads)



Honda ATC 250 R 1982-1984 (Rear Left Pads)



Honda TRX 250 EX Sportrax 2001-2008 (Front Left Pads)



Honda TRX 250 EX Sportrax 2001-2008 (Front Right Pads)



Honda TRX 250 X9 2009-2011 (Front Left Pads)



Honda TRX 250 X9 2009-2011 (Front Right Pads)



Honda TRX 300 EX Sportrax 2001-2008 (Front Left Pads)



Honda TRX 300 EX Sportrax 2001-2008 (Front Right Pads)



Honda TRX 300 EX Sportrax 2001-2008 (Rear Right Pads)



Honda TRX 300 X9 2009 (Front Left Pads)



Honda TRX 300 X9 2009 (Front Right Pads)



Honda ATC 350 X 1985-1989 (Rear Left Pads)



Honda TRX 400 EX Sportrax 2001-2006 (Front Left Pads)



Honda TRX 400 EX Sportrax 2001-2006 (Front Right Pads)



Honda TRX 400 EX Sportrax 2001-2006 (Rear Right Pads)



Honda TRX 400 Fourtrax EX 1999-2008 (Front Left Pads)



Honda TRX 400 Fourtrax EX 1999-2008 (Front Right Pads)



Honda TRX 400 Fourtrax EX 1999-2008 (Rear Right Pads)



Honda TRX 400 X9 2009-2012 (Front Left Pads)



Honda TRX 400 X9 2009-2012 (Front Right Pads)



Honda TRX 420 FA9/FAA/FBB  Fourtrax Rancher AT 2009-2011 (Front Left Pads)



Honda TRX 420 FA9/FAA/FBB  Fourtrax Rancher AT 2009-2011 (Front Right Pads)



Honda TRX 420 FE7/TE7/FM7/TM7 Fourtrax rancher (Right) 2007-2011 (Front Left Pads)



Honda TRX 420 FE7/TE7/FM7/TM7 Fourtrax rancher (Right) 2007-2011 (Front Right Pads)



Honda TRX 420 FPA9 Fourtrax Rancher AT Power Steering 2009-2011 (Front Left Pads)



Honda TRX 420 FPA9 Fourtrax Rancher AT Power Steering 2009-2011 (Front Right Pads)



Honda TRX 420 FPEP Fourtrax Rancher 4x4 ES/EPS 2009-2011 (Front Left Pads)



Honda TRX 420 FPEP Fourtrax Rancher 4x4 ES/EPS 2009-2011 (Front Right Pads)



Honda TRX 420 FPM9 2009-2011 (Front Left Pads)



Honda TRX 420 FPM9 2009-2011 (Front Right Pads)



Honda TRX 500 FE Fourtrax Foreman 2012 (Front Left Pads)



Honda TRX 500 FE Fourtrax Foreman 2012 (Front Right Pads)



Honda TRX 500 FM Fourtrax Foreman 2012 (Front Left Pads)



Honda TRX 500 FM Fourtrax Foreman 2012 (Front Right Pads)



Honda TRX 500 FPE Fourtrax Foreman 2012 (Front Left Pads)



Honda TRX 500 FPE Fourtrax Foreman 2012 (Front Right Pads)



Honda TRX 500 FPM Fourtrax Foreman 2012 (Front Left Pads)



Honda TRX 500 FPM Fourtrax Foreman 2012 (Front Right Pads)
