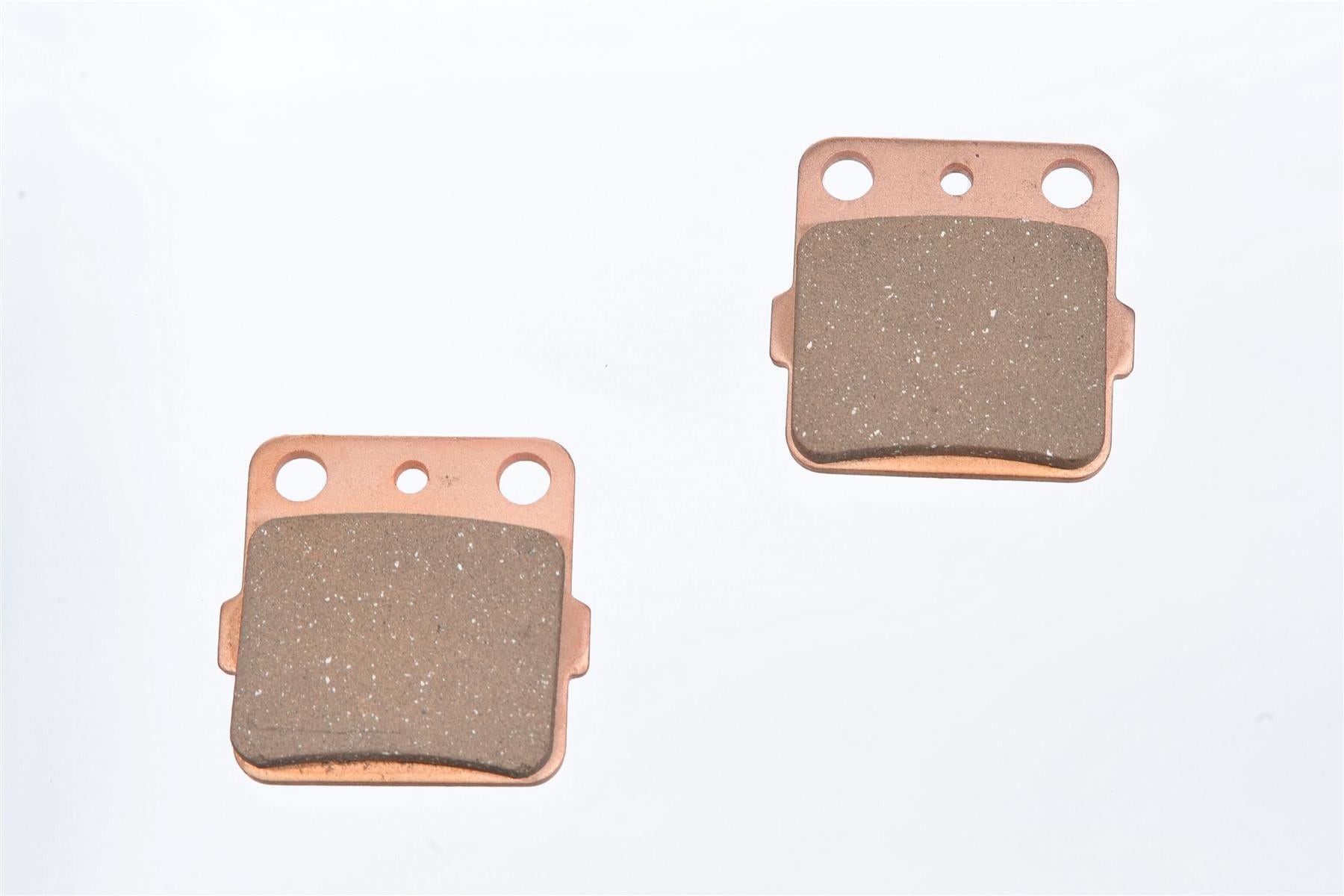

Goldfren S3 Front Brake Pads KTM EXC GS MX WRK 125

Description

Specifications

The S3 sintered compound is optimal for street bikes, dual sport, touring, cruisers. It's recommended on applications with rather larger engines or for people who ride harder than average and want the great stopping power of a sintered brake pad.

The S3 series is designed for low abrasive interaction with the rotor and quieter braking because the ceramic composite material. It has an HH friction rating and performs better at higher temperatures than our AD compound.

Friction materials contain metal-ceramic with a bronze-graphite and non-metallic friction additives are spread evenly on the base fine bronze body to achieve optimal friction properties.

FEATURES:

Very high static friction coefficient.

Minimal difference between wet and dry braking performance.

Good abrasive resistance.

Thermal stability up to 450 degree celsius, and even up to 800 degree celsius over a short term.

Low abrasive interaction with the brake rotor material.

Longer life compared to organic and kevlar composite materials.

RANGE OF APPLICATION:

Recommended for larger street bikes.

For riders who demand a bit more than average from their bikes.

Recommended on both front and rear brakes.

Works well on both dry and wet conditions.

Could also be used on the front brakes for off-road bikes and ATV.

MATERIAL OPERATING PARAMETERS:

Specific pressure: p < 3.0 Mpa

Sliding speed: V < 45 m.s-1

Constant maximum temp.: 450 degree celsius

Short time maximum temp.: 800 degree celsius

Counter-surfaces: steel disks

APPLICATION

ARCTIC CAT
DVX 400 F 04 - 07 - 2 Front

HM
CR 85 R/R2 03 - 07 - Front
CR 150 R/R2 07 - 09 - Front

HONDA
CR 80 R 86 - 91 - Front
CR 80 R, RB 92 - 02 - Front
CR 85 R3/RB3 03 - 07 - Front
CR 150 R/R2 07 - Front
CRF 150 R Oversize with 240mm disc 07 - Front
CRF 150 RB7/R7 07 - Front
ATC 200 X 83 - 85 _ Front/Rear
ATC 250 R 82 - 84 -Rear
TRX 250 EX Sportrax 01 - 08 - 2 Front
TRX 250 X9 09 - 2 Front
TRX 300 EX Sportrax 01 - 08 - 2 Front/Rear
TRX 300 X9 09 - 2 Front
ATC 350 X 85 - Rear
TRX 400 EX Sportrax 01 - 06 - 2 Front/Rear
TRX 400 Fourtrax EX 99 - 08 - 2 Front/Rear
TRX 400 X9 09 - 2 Front
TRX 420 FA9 Fourtrax Rancher AT 09 - 2 Front
TRX 420 FE7/TE7/FM7/TM7 Fourtrax rancher(Right) 07 - 09 - 2 Front
TRX 420 FPA9 Fourtrax Rancher AT Power Steering 09 - 2 Front
TRX 420 FPEP Fourtrax Rancher 4x4 ES/EPS 09 - 2 Front
TRX 420 FPM9 09 - 2 Front
