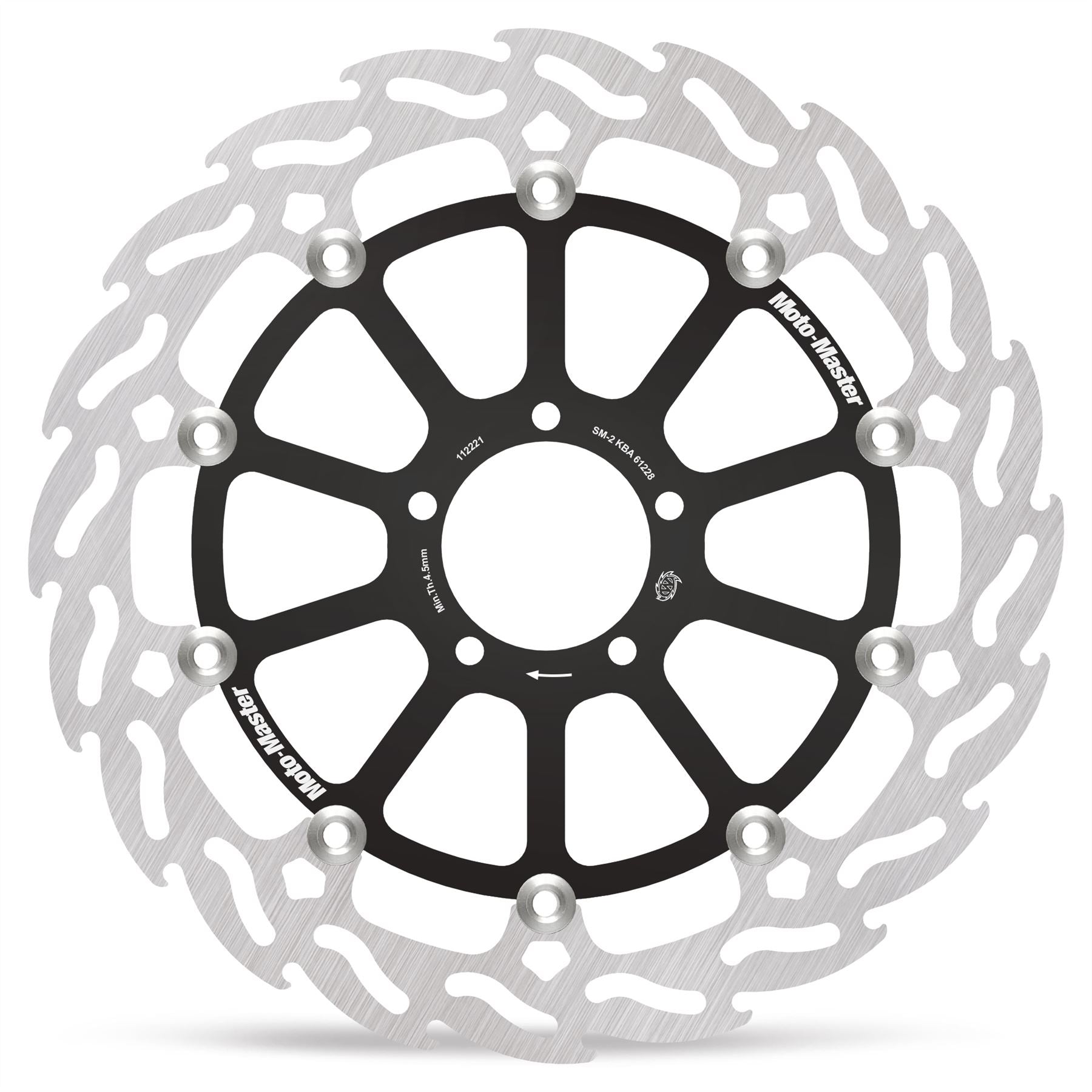

Moto-Master Floating Flame Series 320 mm Front Brake Disc
SKU:112221
Regular price
£214.95
Sale price
£214.95
Regular price
£214.95
Unit price
per
Sale
Sold out
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description
- MAXIMUM CONTROL Flame-shaped venting slots and outer perimeter ensure consistent and an edual amount of contact surface between the brake pad and disc throughout the entire rotation, providing smoother. more predictable braking and allowing for harder braking.
- REDUCED BRAKE PAD WEAR The Flame design ensures that the brake pads are evenly supported on the disc surface at all times, preventing them from tilting under high pressure.
- OPTIMAL COOLING & REDUCED WEIGHT Flame shaped venting slots are lined up in the tangential direction of movement allowing for oversized slots without them chipping away at the brake pads.
- SUPERIOR DISC FINISH Specialized laser-cutting technology creates a clean, corrosion-resistant edge. The disc thickness variation is maintained with a precision margin of 0.003mm, eliminating brake lever pulsation and delivering exceptional rider feedback.
- LIGHTWEIGHT FLOATERS The outer ring is fitted to the inner carrier using a lightweight stainless steel floater, designed for maximum strenath and durability.
- DISC & BRAKE PAD CLEANING The flame shaped outer perimeter and venting slots are specifically designed to continuous clean the entire brake pad contact surface while instantly evacuating hot gases.
-
CRAFTSMANSHIP The inner carrier is precision CNC-machined from billet aircraft aluminum and
anodized for maximum strenath and durability.
Specifications:
| Outer diameter: | 320.0 mm |
| Inner diameter: | 64.0 mm |
| Thickness: | 5.0 mm |
| Number of Holes: | 5 |
| Hole diameter: | 8.5 mm |
| Pitch: | 80.0 mm |
| Type: | Floating disc with alu inner carrier |
| Turning direction: | Left Side Mount |
| Speedometer prepared: | No |
| Colour Inner: | No |
APPLICATION
Front Right
BRABUS 1300 R 2022-2023
BRABUS 1300 R Masterpiece Edition 2023
CF MOTO 1000 MT-X 2026
CF MOTO 800 MT 2022-2026
CF MOTO 800 MT Explore 2023-2026
CF MOTO 800 MT Sport 2022-2026
CF MOTO 800 MT Touring 2022-2024
CF MOTO 800 MT-X 2025-2026
CF MOTO 800 NK 2023-2026
KTM 1290 Superduke GT 2016-2024
KTM 1290 Superduke R 2014-2023
KTM 1290 Superduke R EVO 2022-2023
KTM 1290 Superduke RR 2021
KTM 1390 Superduke R 2024-2026
KTM 1390 Superduke R EVO 2024-2026
KTM 1390 Superduke RR 2026
KTM 990 Duke R 2025-2026
KTM 990 RC-R 2026
KTM 990 RC-R Track 2026
