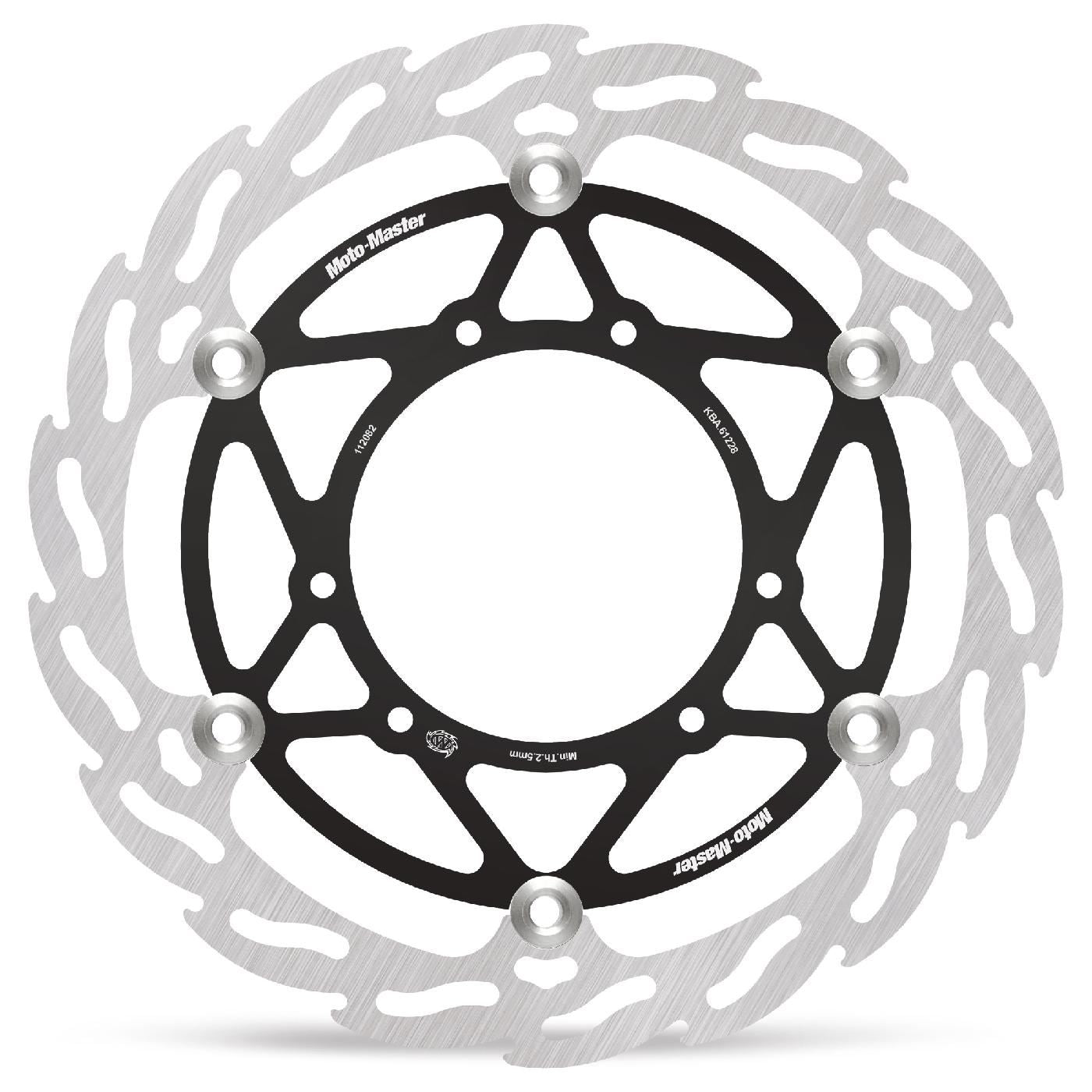

Moto-Master Front Floating Flame Series 270 mm For Honda CRF 450 X 2005-2018
Couldn't load pickup availability
Description
- MAXIMUM CONTROL Flame-shaped venting slots and outer perimeter ensure consistent and an edual amount of contact surface between the brake pad and disc throughout the entire rotation, providing smoother. more predictable braking and allowing for harder braking.
- REDUCED BRAKE PAD WEAR The Flame design ensures that the brake pads are evenly supported on the disc surface at all times, preventing them from tilting under high pressure.
- OPTIMAL COOLING & REDUCED WEIGHT Flame shaped venting slots are lined up in the tangential direction of movement allowing for oversized slots without them chipping away at the brake pads.
- SUPERIOR DISC FINISH Specialized laser-cutting technology creates a clean, corrosion-resistant edge. The disc thickness variation is maintained with a precision margin of 0.003mm, eliminating brake lever pulsation and delivering exceptional rider feedback.
- LIGHTWEIGHT FLOATERS The outer ring is fitted to the inner carrier using a lightweight stainless steel floater, designed for maximum strenath and durability.
- DISC & BRAKE PAD CLEANING The flame shaped outer perimeter and venting slots are specifically designed to continuous clean the entire brake pad contact surface while instantly evacuating hot gases.
-
CRAFTSMANSHIP The inner carrier is precision CNC-machined from billet aircraft aluminum and
anodized for maximum strenath and durability.
Specifications:
| Outer diameter: | 270.0 mm |
| Inner diameter: | 105.0 mm |
| Thickness: | 3.1 mm |
| Number of Holes: | 5 |
| Hole diameter: | 6.5 mm |
| Pitch: | 120.0 mm |
| Type: | Floating disc with alu inner carrier |
| Turning direction: | Left Side Mount |
| Speedometer prepared: | Yes |
| Colour Inner: | Yes |
APPLICATION
Front
HONDA CR 125 1995-1997
HONDA CR 125 1998-2000
HONDA CR 125 2001
HONDA CR 125 2002-2003
HONDA CR 125 2004
HONDA CR 125 2005-2007
HONDA CR 250 1995-1996
HONDA CR 250 1997
HONDA CR 250 1998-2000
HONDA CR 250 2001
HONDA CR 250 2002-2003
HONDA CR 250 2004
HONDA CR 250 2005-2007
HONDA CR 500 1995-2001
HONDA CRF 250 R 2004-2006
HONDA CRF 250 R 2007-2008
HONDA CRF 250 R 2009
HONDA CRF 250 R 2010-2014
HONDA CRF 250 R 2015-2017
HONDA CRF 250 R 2018
HONDA CRF 250 R 2019-2021
HONDA CRF 250 R 2022-2026
HONDA CRF 250 RWE 2025-2026
HONDA CRF 250 RX 2019-2021
HONDA CRF 250 RX 2022-2024
HONDA CRF 250 RX 2025-2026
HONDA CRF 250 X 2004-2005
HONDA CRF 250 X 2006-2017
HONDA CRF 450 R 2002-2003
HONDA CRF 450 R 2004
HONDA CRF 450 R 2005-2006
HONDA CRF 450 R 2007
HONDA CRF 450 R 2008
HONDA CRF 450 R 2009-2014
HONDA CRF 450 R 2015-2018
HONDA CRF 450 R 2019-2020
HONDA CRF 450 R 2021-2026
HONDA CRF 450 RWE 2019-2020
HONDA CRF 450 RWE 2021-2026
HONDA CRF 450 RX 2017-2018
HONDA CRF 450 RX 2019-2020
HONDA CRF 450 RX 2021-2026
HONDA CRF 450 X 2005-2007
HONDA CRF 450 X 2008-2018
Front Left
SUR-RON Storm Bee 0 2023
