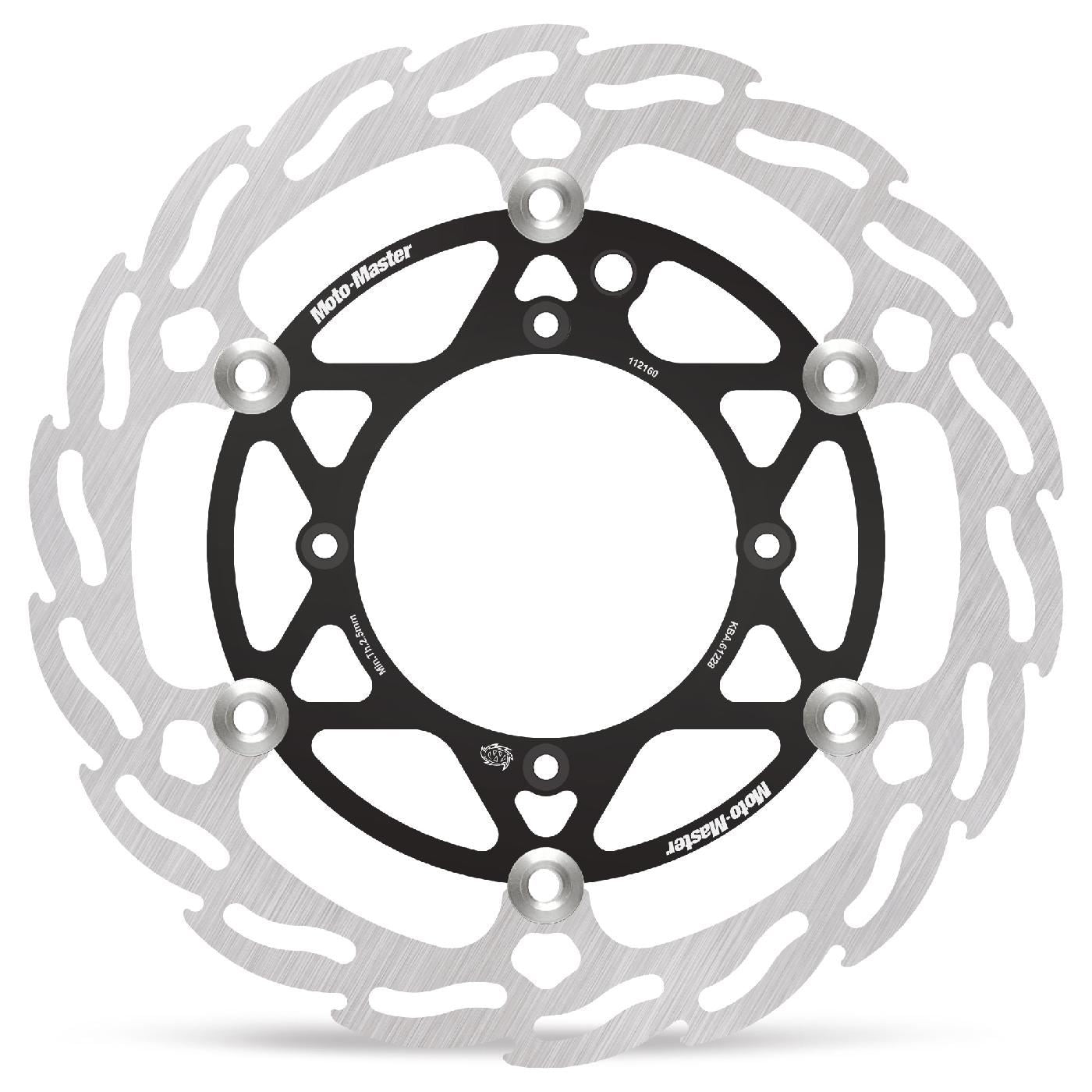

Moto-Master Front Left Floating Flame Series 260 mm For KTM 0 Freeride E-SX 2015-2016
Couldn't load pickup availability
Description
- MAXIMUM CONTROL Flame-shaped venting slots and outer perimeter ensure consistent and an edual amount of contact surface between the brake pad and disc throughout the entire rotation, providing smoother. more predictable braking and allowing for harder braking.
- REDUCED BRAKE PAD WEAR The Flame design ensures that the brake pads are evenly supported on the disc surface at all times, preventing them from tilting under high pressure.
- OPTIMAL COOLING & REDUCED WEIGHT Flame shaped venting slots are lined up in the tangential direction of movement allowing for oversized slots without them chipping away at the brake pads.
- SUPERIOR DISC FINISH Specialized laser-cutting technology creates a clean, corrosion-resistant edge. The disc thickness variation is maintained with a precision margin of 0.003mm, eliminating brake lever pulsation and delivering exceptional rider feedback.
- LIGHTWEIGHT FLOATERS The outer ring is fitted to the inner carrier using a lightweight stainless steel floater, designed for maximum strenath and durability.
- DISC & BRAKE PAD CLEANING The flame shaped outer perimeter and venting slots are specifically designed to continuous clean the entire brake pad contact surface while instantly evacuating hot gases.
-
CRAFTSMANSHIP The inner carrier is precision CNC-machined from billet aircraft aluminum and
anodized for maximum strenath and durability.
Specifications:
| Outer diameter: | 310.0 mm |
| Inner diameter: | 132.0 mm |
| Thickness: | 5.0 mm |
| Number of Holes: | 5 |
| Hole diameter: | 8.5 mm |
| Pitch: | 150.0 mm |
| Type: | Floating disc with alu inner carrier |
| Turning direction: | Right Side Mount |
| Speedometer prepared: | No |
| Colour Inner: | No |
APPLICATION
Front
GASGAS MC 85 17/14 2022-2024
GASGAS MC 85 17/14 2025-2026
GASGAS MC 85 19/16 2021-2024
GASGAS MC 85 19/16 2025-2026
HUSQVARNA TC 85 (17/14) 2014-2015
HUSQVARNA TC 85 (17/14) 2016-2017
HUSQVARNA TC 85 (17/14) 2018-2020
HUSQVARNA TC 85 (17/14) 2021-2024
HUSQVARNA TC 85 (17/14) 2025-2026
HUSQVARNA TC 85 (19/16) 2014-2017
HUSQVARNA TC 85 (19/16) 2018-2020
HUSQVARNA TC 85 (19/16) 2021-2024
HUSQVARNA TC 85 (19/16) 2025-2026
KTM 0 Freeride E-SX 2012-2014
KTM 0 Freeride E-XC 2021-2022
KTM 85 SX (17/14) 2012
KTM 85 SX (17/14) 2013
KTM 85 SX (17/14) 2014-2015
KTM 85 SX (17/14) 2016-2017
KTM 85 SX (17/14) 2018-2020
KTM 85 SX (17/14) 2021-2024
KTM 85 SX (17/14) 2025-2027
KTM 85 SX (19/16) 2012
KTM 85 SX (19/16) 2013
KTM 85 SX (19/16) 2014-2017
KTM 85 SX (19/16) 2018-2020
KTM 85 SX (19/16) 2021-2024
KTM 85 SX (19/16) 2025-2027
KTM Freeride 250 F 2018-2019
KTM Freeride 250 R 2014-2017
KTM Freeride 350 2012-2013
KTM Freeride 350 2014-2017
Front Left
KTM 0 Freeride E-SM 2015-2016
KTM 0 Freeride E-SX 2015-2016
KTM 0 Freeride E-XC 2015-2016
KTM 0 Freeride E-XC 2017
KTM 0 Freeride E-XC 2018-2020
