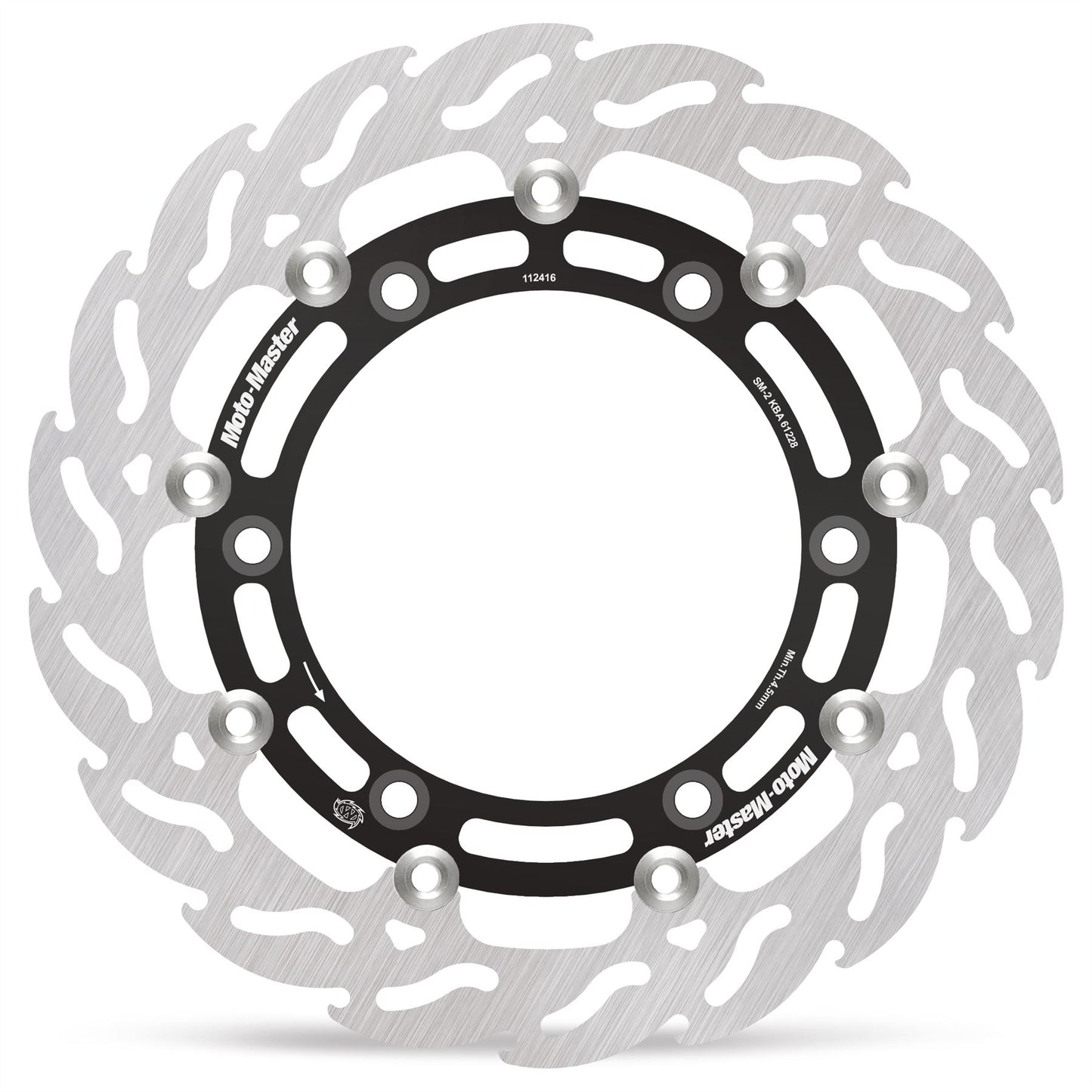

Moto-Master Front Left Floating Flame Series 296 mm For Honda CB 750 1983-1984
Couldn't load pickup availability
Description
- MAXIMUM CONTROL Flame-shaped venting slots and outer perimeter ensure consistent and an edual amount of contact surface between the brake pad and disc throughout the entire rotation, providing smoother. more predictable braking and allowing for harder braking.
- REDUCED BRAKE PAD WEAR The Flame design ensures that the brake pads are evenly supported on the disc surface at all times, preventing them from tilting under high pressure.
- OPTIMAL COOLING & REDUCED WEIGHT Flame shaped venting slots are lined up in the tangential direction of movement allowing for oversized slots without them chipping away at the brake pads.
- SUPERIOR DISC FINISH Specialized laser-cutting technology creates a clean, corrosion-resistant edge. The disc thickness variation is maintained with a precision margin of 0.003mm, eliminating brake lever pulsation and delivering exceptional rider feedback.
- LIGHTWEIGHT FLOATERS The outer ring is fitted to the inner carrier using a lightweight stainless steel floater, designed for maximum strenath and durability.
- DISC & BRAKE PAD CLEANING The flame shaped outer perimeter and venting slots are specifically designed to continuous clean the entire brake pad contact surface while instantly evacuating hot gases.
-
CRAFTSMANSHIP The inner carrier is precision CNC-machined from billet aircraft aluminum and
anodized for maximum strenath and durability.
Specifications:
| Outer diameter: | 290.0 mm |
| Inner diameter: | 142.4 mm |
| Thickness: | 4.0 mm |
| Number of Holes: | 5 |
| Hole diameter: | 10.6 mm |
| Pitch: | 162.0 mm |
| Type: | Floating disc with alu inner carrier |
| Turning direction: | Right Side Mount |
| Speedometer prepared: | No |
| Colour Inner: | No |
APPLICATION
Front Left
CAGIVA Canyon 500 1996-2004
CAGIVA Canyon 600 1995-1998
CAGIVA Elefant 750 1993-1996
CAGIVA Elefant 900 I.E. 1990-1992
CAGIVA Gran Canyon 900 1997-2000
CAGIVA Navigator 1000 2000-2006
HONDA CB 750 1983-1984
HONDA CB 750 Seven Fifty 1992-2001
HONDA CBF 600 N (ABS) 2004-2007
HONDA CBF 600 N (non-ABS) 2004-2007
HONDA CBF 600 S (ABS) 2004-2007
HONDA CBF 600 S (non-ABS) 2004-2007
HONDA CBR 1000 F 1987-1988
HONDA CBR 1000 F 1989-1992
HONDA CBR 1000 F 1993-2000
HONDA NT 650 V Deauville 1998-2000
HONDA NT 650 V Deauville 2001
HONDA NT 650 V Deauville 2002-2005
HONDA NT 700 V Deauville 2006-2015
HONDA ST 1100 Pan European (non-ABS) 1996-2002
HONDA VFR 750 F 1988-1993
HONDA VT 750 C2 Custom 1997-2001
HONDA VT 750 C2 Custom 2002-2003
HONDA VT 750 D Black Widow 2001-2003
HONDA VT 750 D Black Widow 2004
HONDA VT 750 D Shadow Spirit 2007-2009
HONDA Xelvis V-25 250 1997-1999
