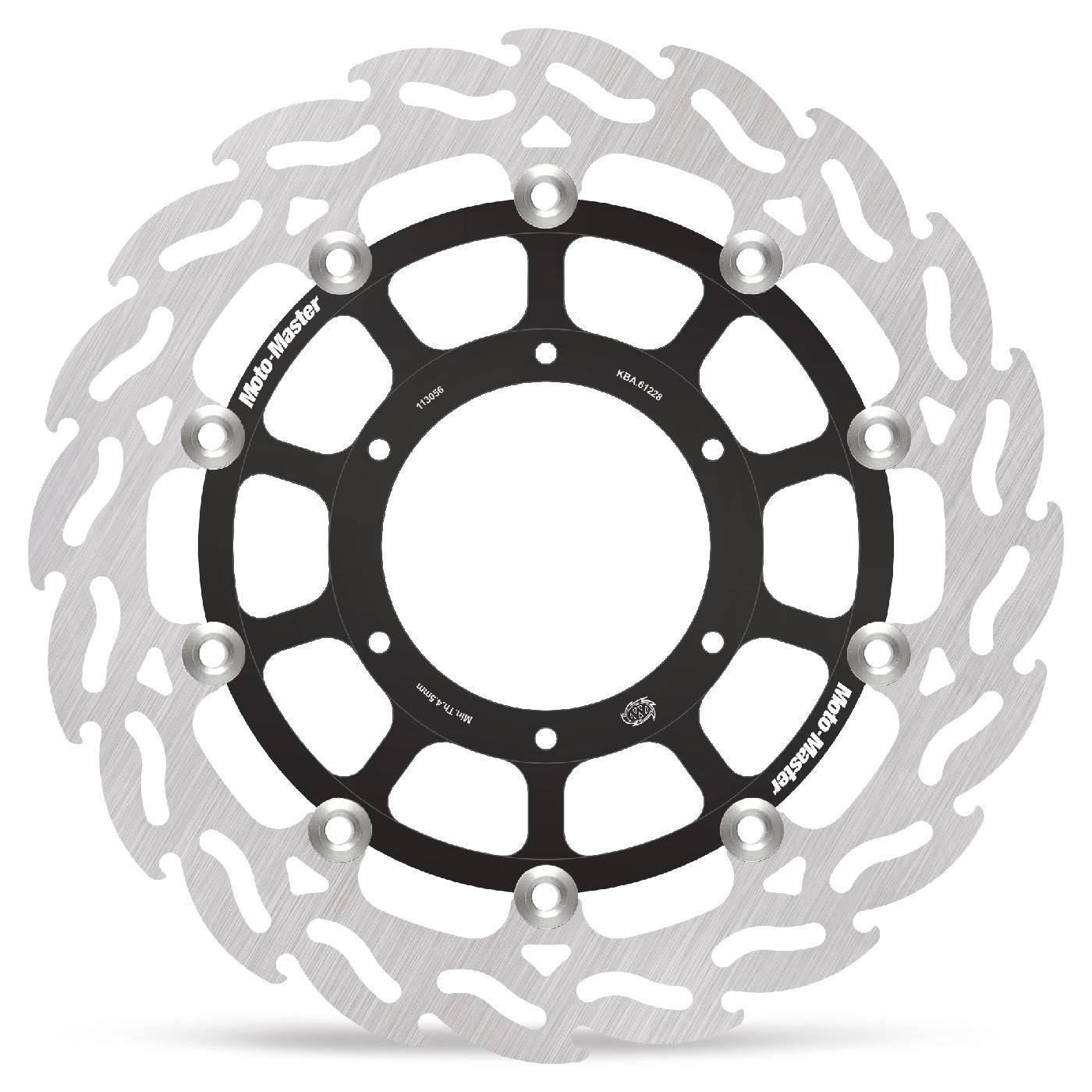

Moto-Master Front Right Floating Flame Series 296 mm For Honda DN-01 680 (NSA700A) 2008-2010
SKU:113056
Regular price
£214.95
Sale price
£214.95
Regular price
£214.95
Unit price
per
Sale
Sold out
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description
- MAXIMUM CONTROL Flame-shaped venting slots and outer perimeter ensure consistent and an edual amount of contact surface between the brake pad and disc throughout the entire rotation, providing smoother. more predictable braking and allowing for harder braking.
- REDUCED BRAKE PAD WEAR The Flame design ensures that the brake pads are evenly supported on the disc surface at all times, preventing them from tilting under high pressure.
- OPTIMAL COOLING & REDUCED WEIGHT Flame shaped venting slots are lined up in the tangential direction of movement allowing for oversized slots without them chipping away at the brake pads.
- SUPERIOR DISC FINISH Specialized laser-cutting technology creates a clean, corrosion-resistant edge. The disc thickness variation is maintained with a precision margin of 0.003mm, eliminating brake lever pulsation and delivering exceptional rider feedback.
- LIGHTWEIGHT FLOATERS The outer ring is fitted to the inner carrier using a lightweight stainless steel floater, designed for maximum strenath and durability.
- DISC & BRAKE PAD CLEANING The flame shaped outer perimeter and venting slots are specifically designed to continuous clean the entire brake pad contact surface while instantly evacuating hot gases.
-
CRAFTSMANSHIP The inner carrier is precision CNC-machined from billet aircraft aluminum and
anodized for maximum strenath and durability.
Specifications:
| Outer diameter: | 296.0 mm |
| Inner diameter: | 94.0 mm |
| Thickness: | 5.0 mm |
| Number of Holes: | 6 |
| Hole diameter: | 6.5 mm |
| Pitch: | 110.0 mm |
| Type: | Floating disc with alu inner carrier, offset |
| Turning direction: | Left Side Mount |
| Speedometer prepared: | No |
| Colour Inner: | No |
APPLICATION
Front Right
HONDA CBF 1000 (ABS) 2006-2010
HONDA CBF 1000 (non-ABS) 2006-2010
HONDA CBF 1000 F (ABS) 2010-2014
HONDA CBF 1000 F (non-ABS) 2010-2012
HONDA CBF 600 N (ABS) 2008-2011
HONDA CBF 600 N (non-ABS) 2008-2011
HONDA CBF 600 S (ABS) 2008-2010
HONDA CBF 600 S (non-ABS) 2008-2010
HONDA CBR 250 R (Bybre caliper) 2011-2013
HONDA CBR 250 R (Nissin caliper) (ABS) 2011-2017
HONDA CBR 250 R (Nissin caliper) (non-ABS) 2011-2017
HONDA CBR 300 F (ABS) 2014-2016
HONDA CBR 300 F (non-ABS) 2014-2016
HONDA CBR 300 R (ABS) 2014-2017
HONDA CBR 300 R (non-ABS) 2014-2017
HONDA DN-01 680 (NSA700A) 2008-2010
