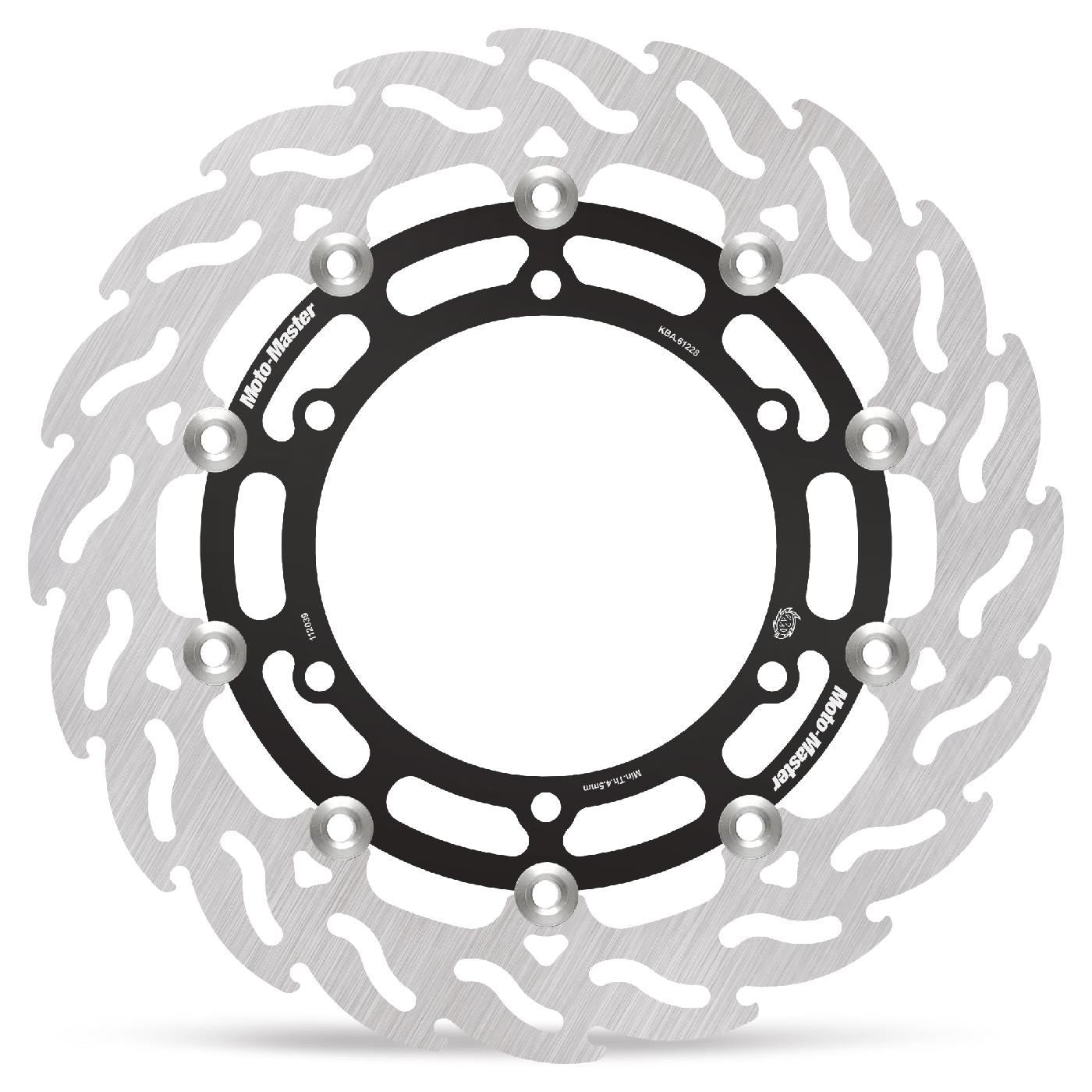

Moto-Master Front Right Floating Flame Series 298 mm For Yamaha XT 660 Z Ténéré 2008-2015
Couldn't load pickup availability
Description
- MAXIMUM CONTROL Flame-shaped venting slots and outer perimeter ensure consistent and an edual amount of contact surface between the brake pad and disc throughout the entire rotation, providing smoother. more predictable braking and allowing for harder braking.
- REDUCED BRAKE PAD WEAR The Flame design ensures that the brake pads are evenly supported on the disc surface at all times, preventing them from tilting under high pressure.
- OPTIMAL COOLING & REDUCED WEIGHT Flame shaped venting slots are lined up in the tangential direction of movement allowing for oversized slots without them chipping away at the brake pads.
- SUPERIOR DISC FINISH Specialized laser-cutting technology creates a clean, corrosion-resistant edge. The disc thickness variation is maintained with a precision margin of 0.003mm, eliminating brake lever pulsation and delivering exceptional rider feedback.
- LIGHTWEIGHT FLOATERS The outer ring is fitted to the inner carrier using a lightweight stainless steel floater, designed for maximum strenath and durability.
- DISC & BRAKE PAD CLEANING The flame shaped outer perimeter and venting slots are specifically designed to continuous clean the entire brake pad contact surface while instantly evacuating hot gases.
-
CRAFTSMANSHIP The inner carrier is precision CNC-machined from billet aircraft aluminum and
anodized for maximum strenath and durability.
Specifications:
| Outer diameter: | 290.0 mm |
| Inner diameter: | 69.0 mm |
| Thickness: | 5.0 mm |
| Number of Holes: | 5 |
| Hole diameter: | 10.3 mm |
| Pitch: | 91.0 mm |
| Type: | Floating disc with alu inner carrier |
| Turning direction: | Right Side Mount |
| Speedometer prepared: | No |
| Colour Inner: | No |
APPLICATION
Front Right
YAMAHA BT 1100 Bulldog 2002-2006
YAMAHA FJR 1300 2001-2002
YAMAHA FZS 1000 Fazer 2001-2005
YAMAHA TDM 900 2002-2010
YAMAHA TDM 900 2011
YAMAHA TDM 900 2012
YAMAHA V-Max 1200 1993-2002
YAMAHA V-Max 1200 2003-2007
YAMAHA XJ 600 N 1998-2003
YAMAHA XJ 600 S Diversion 1998-2003
YAMAHA XJR 1300 2000-2001
YAMAHA XJR 1300 2002-2013
YAMAHA XJR 1300 C Racer 2015-2016
YAMAHA XJR 1300 SP 1999-2001
YAMAHA XT 660 Z Explorer 2014
YAMAHA XT 660 Z Tenere 2008-2015
YAMAHA XT 660 Z Urban Explorer 2014
YAMAHA XV 1700 2002
YAMAHA XV 1700 2003-2004
YAMAHA XV 535 Virago 1995-2003
YAMAHA XVS 1100 Drag Star 1999-2004
YAMAHA XVS 1100 Drag Star Classic 2002-2007
YAMAHA XVS 1300 A Midnight Star 2007
YAMAHA XVS 1300 Casual Full Dress 2014
YAMAHA XVS 1600 Wild Star Road Star 1999-2002
YAMAHA XVS 1600 Wild Star Road Star 2003-2004
YAMAHA XVS 1900 2014-2015
YAMAHA XVS 650 Dragstar Classic 1997-2006
YAMAHA XVZ 1300 Royal Star 1996-2000
YAMAHA XVZ 1300 Royal Star 2001-2005
YAMAHA XVZ 1300 Royal Star Venture 1999-2001
YAMAHA XVZ 1300 Royal Star Venture 2002-2004
YAMAHA YZF 1000 Thunderace 1996-2002
YAMAHA YZF 600 Thundercat 1996-2000
YAMAHA YZF R1 1000 1998-2001
YAMAHA YZF R1 1000 2002-2003
YAMAHA YZF R6 600 1999-2002
