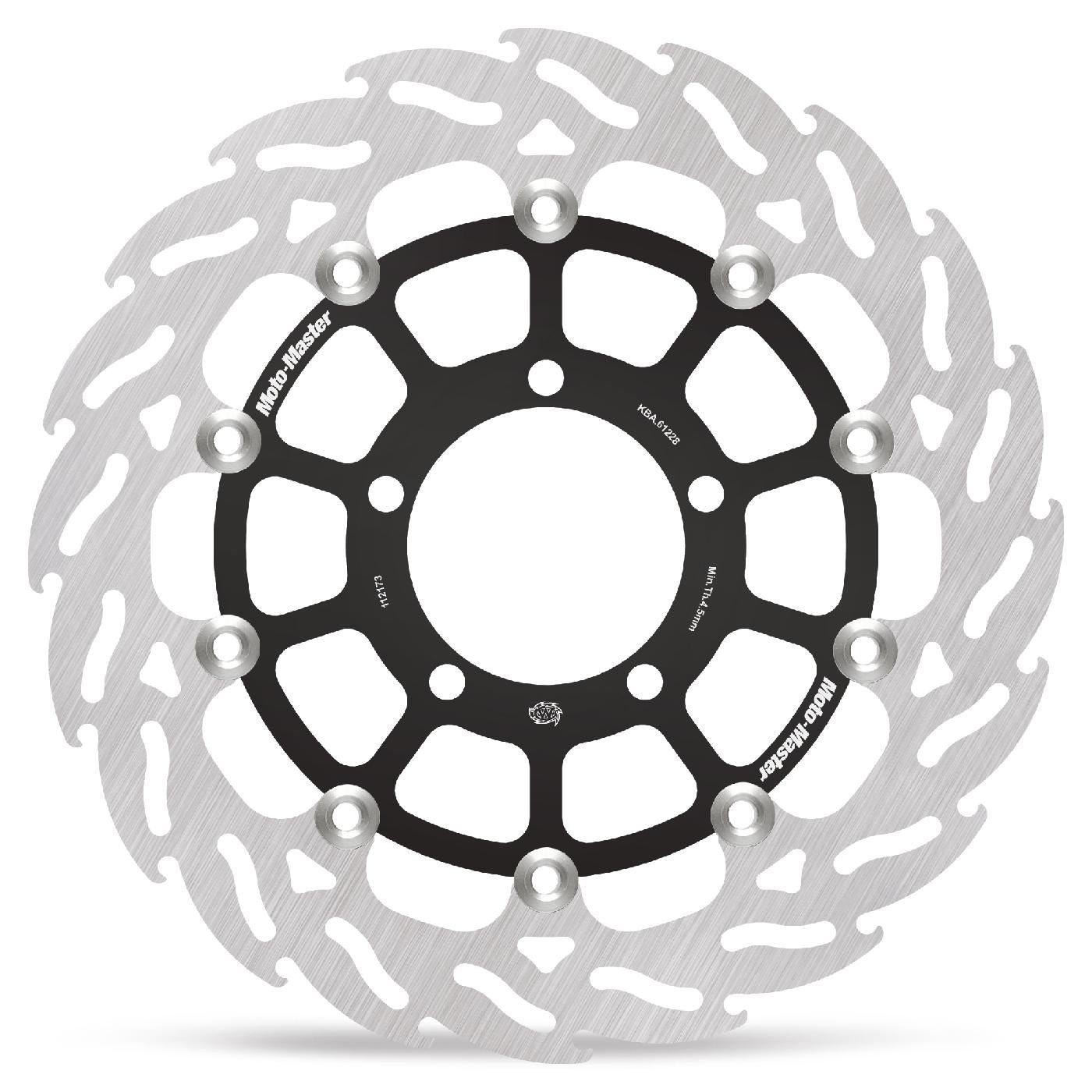

Moto-Master Front Right Floating Flame Series 310 mm For Triumph Street Triple 675 R 2013-2016
Couldn't load pickup availability
Description
- MAXIMUM CONTROL Flame-shaped venting slots and outer perimeter ensure consistent and an edual amount of contact surface between the brake pad and disc throughout the entire rotation, providing smoother. more predictable braking and allowing for harder braking.
- REDUCED BRAKE PAD WEAR The Flame design ensures that the brake pads are evenly supported on the disc surface at all times, preventing them from tilting under high pressure.
- OPTIMAL COOLING & REDUCED WEIGHT Flame shaped venting slots are lined up in the tangential direction of movement allowing for oversized slots without them chipping away at the brake pads.
- SUPERIOR DISC FINISH Specialized laser-cutting technology creates a clean, corrosion-resistant edge. The disc thickness variation is maintained with a precision margin of 0.003mm, eliminating brake lever pulsation and delivering exceptional rider feedback.
- LIGHTWEIGHT FLOATERS The outer ring is fitted to the inner carrier using a lightweight stainless steel floater, designed for maximum strenath and durability.
- DISC & BRAKE PAD CLEANING The flame shaped outer perimeter and venting slots are specifically designed to continuous clean the entire brake pad contact surface while instantly evacuating hot gases.
-
CRAFTSMANSHIP The inner carrier is precision CNC-machined from billet aircraft aluminum and
anodized for maximum strenath and durability.
Specifications:
| Outer diameter: | 310.0 mm |
| Inner diameter: | 82.5 mm |
| Thickness: | 5.0 mm |
| Number of Holes: | 5 |
| Hole diameter: | 10.5 mm |
| Pitch: | 100.5 mm |
| Type: | Floating disc with alu inner carrier |
| Turning direction: | Left Side Mount |
| Speedometer prepared: | No |
| Colour Inner: | No |
APPLICATION
Front Right
TRIUMPH Bonneville 1200 Bobber 2021-2024
TRIUMPH Bonneville 1200 Bobber Black 2018-2021
TRIUMPH Bonneville 1200 Speedmaster 2018-2024
TRIUMPH Bonneville 1200 T120 2016-2020
TRIUMPH Bonneville 1200 T120 2021-2024
TRIUMPH Daytona 675 2013-2016
TRIUMPH Daytona 675 R 2013-2016
TRIUMPH Daytona 765 Moto2 2020
TRIUMPH Scrambler 1200 X 2024
TRIUMPH Street Triple 660 S 2020-2023
TRIUMPH Street Triple 675 2013-2016
TRIUMPH Street Triple 675 R 2013-2016
TRIUMPH Street Triple 675 RX 2015-2016
TRIUMPH Street Triple 765 Moto2 2023-2024
TRIUMPH Street Triple 765 R 2017-2022
TRIUMPH Street Triple 765 RS 2017-2022
TRIUMPH Street Triple 765 S 2017-2019
TRIUMPH Thruxton 1200 2016-2021
TRIUMPH Thruxton 1200 Final Edition 2024
TRIUMPH Thruxton 1200 R 2016-2021
TRIUMPH Thruxton 1200 RS 2020-2024
