Renthal Fat Bar 28.6mm Mounts 5mm Off Set For Honda CRF 250X 2004-2016

Description

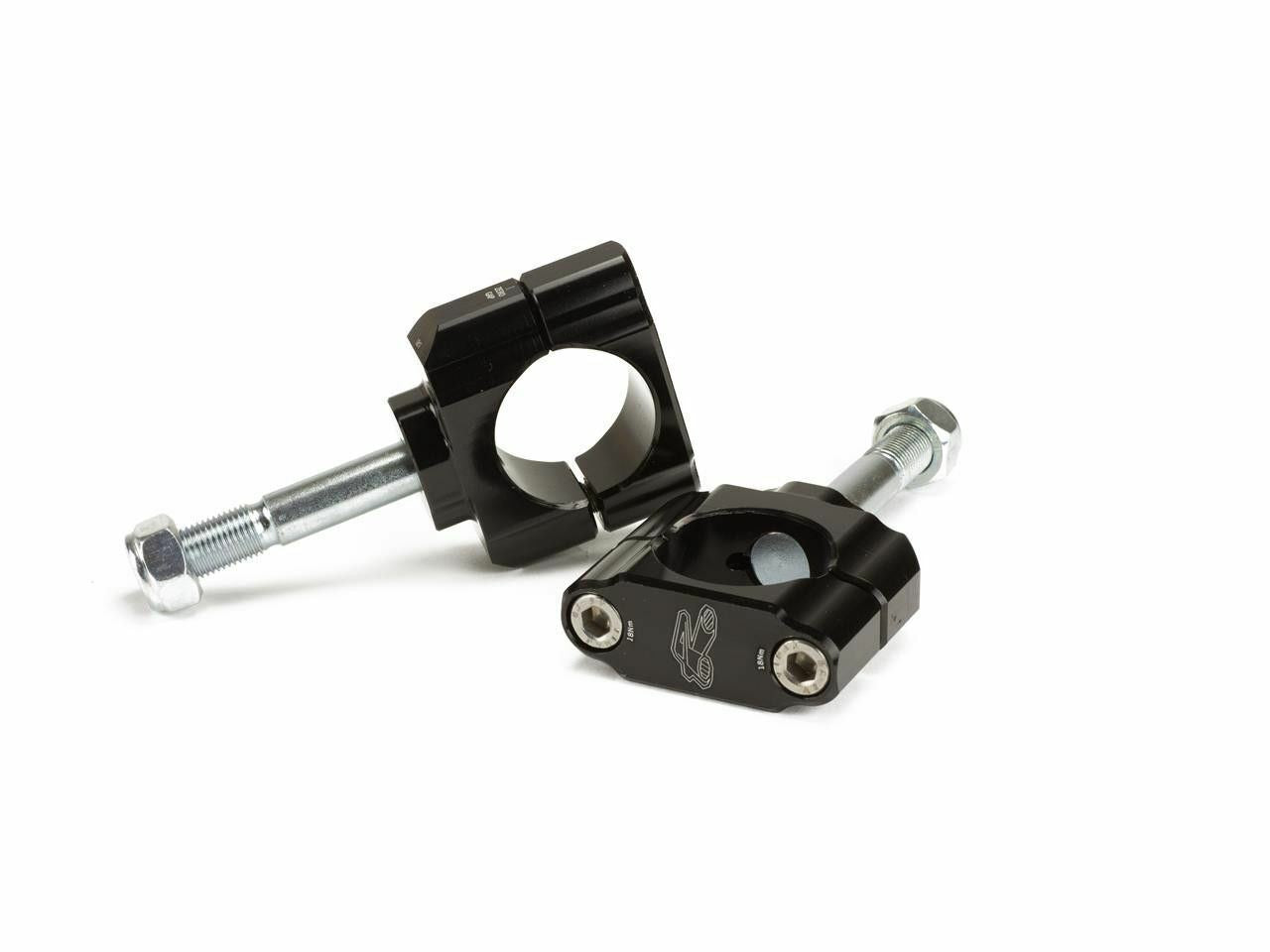

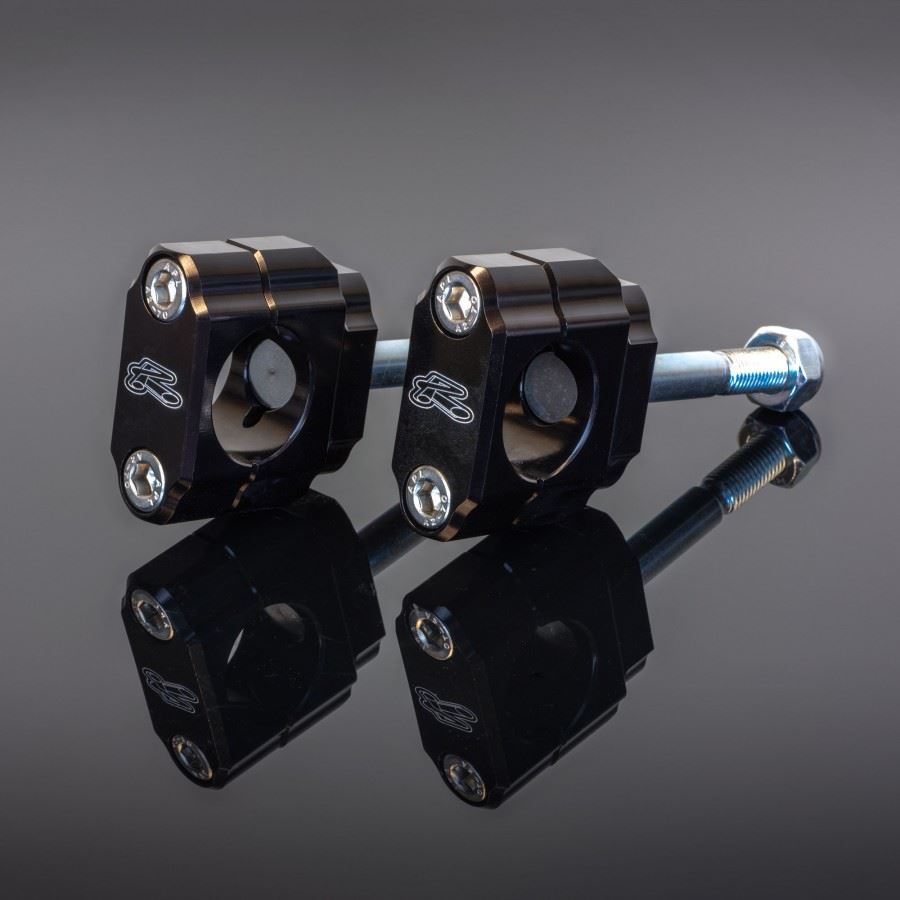

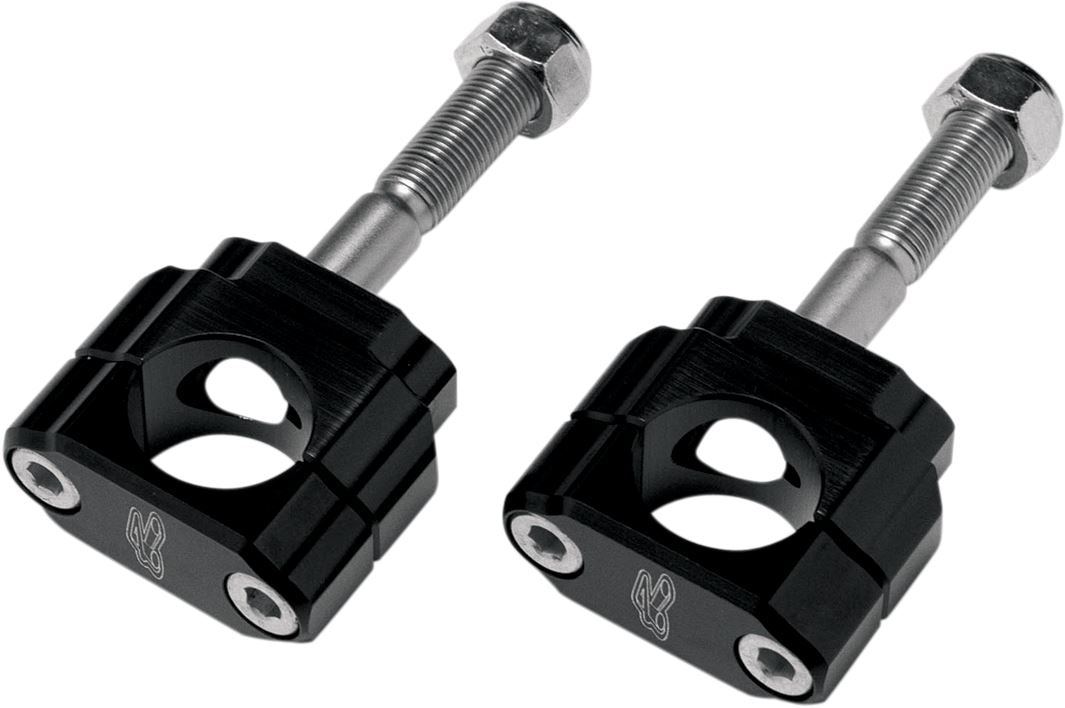

Renthal’s 1 1/8” (28.6mm) handlebar mounts are designed to allow the mounting of oversized 1 1/8” handlebars, such as the Twinwall or Fatbar, on certain model motorcycles which are equipped with 7/8” handlebars as standard.  These are CNC machined from 6082-T6 billet aluminum and black anodized with laser etched Renthal logo.

The mounting studs are a special CNC machined hardened nickel chromoly steel with a machined relief to allow for the bending of the stud in the event of a hard crash.  Our 1 1/8” mounts are meant to be a direct OEM replacement for the stock 7/8” mounts and will replicate the OEM bar position and height.

Sold as a pair.

• The clamps are CNC precision machined from 6082 T6 solid billet, high strength aluminium alloy.
• Precision CNC machining ensures a perfect fit between the handlebar and clamp for maximum clamping strength.
• The bolts are CNC machined from nickel chromium molybdenum 817M40 steel and the hardened and tempered to grade W strength.
• A unique bolt head design with part hemispherical seating blended into the shank minimises the chance of bolt failure.
• Renthal bar mounts are designed to replicate the bar postion of the OE bar mounts.
• Black anodised finish.
• Please note Renthal bar mounts are designed to utilize the OE rubber cones.

APPLICATION
Honda CB 125R ABS 2018-2021
Honda CR 125R 2000-2007
Honda CR 250R 2000-2007
Honda CRF 250R 2003-2022
Honda CRF 250RX 2019-2022
Honda CRF 250X 2004-2016
Honda CRF 450R 2002-2024
Honda CRF 450RL 2021-2024
Honda CRF 450RWE 2019-2022
Honda CRF 450RX 2017-2024
Honda CRF 450X 2005-2024
Kawasaki KLX 140 2011-2020
Kawasaki KLX 140L 2011-2020
Kawasaki KLX 140R 2021-2024
Kawasaki KLX 140RL 2021-2024
Kawasaki KX 100 2014-2021
Kawasaki KX 112 2023-2024
Kawasaki KX 125 2003-2008
Kawasaki KX 250 2006-2008
Kawasaki KX 250F 2006-2008
Kawasaki KX 450F 2006-2008
Kawasaki KX 85 17/14 2014-2023
Kawasaki KX 85 19/16 2007-2023
Kawasaki Z 650 2018-2019
Kawasaki Z 650 ABS 2017-2024
Kawasaki Z 650 RS ABS 2022-2024
Yamaha WR 250F 2014-2024
Yamaha WR 450F 2016-2023
Yamaha YZ 250F 2014-2023
Yamaha YZ 250 FX 2015-2024
Yamaha YZ 250 X 2016
Yamaha YZ 450F 2014-2024
Yamaha YZ 450 FX 2016-2021
Yamaha YZ 65 2018-2024
