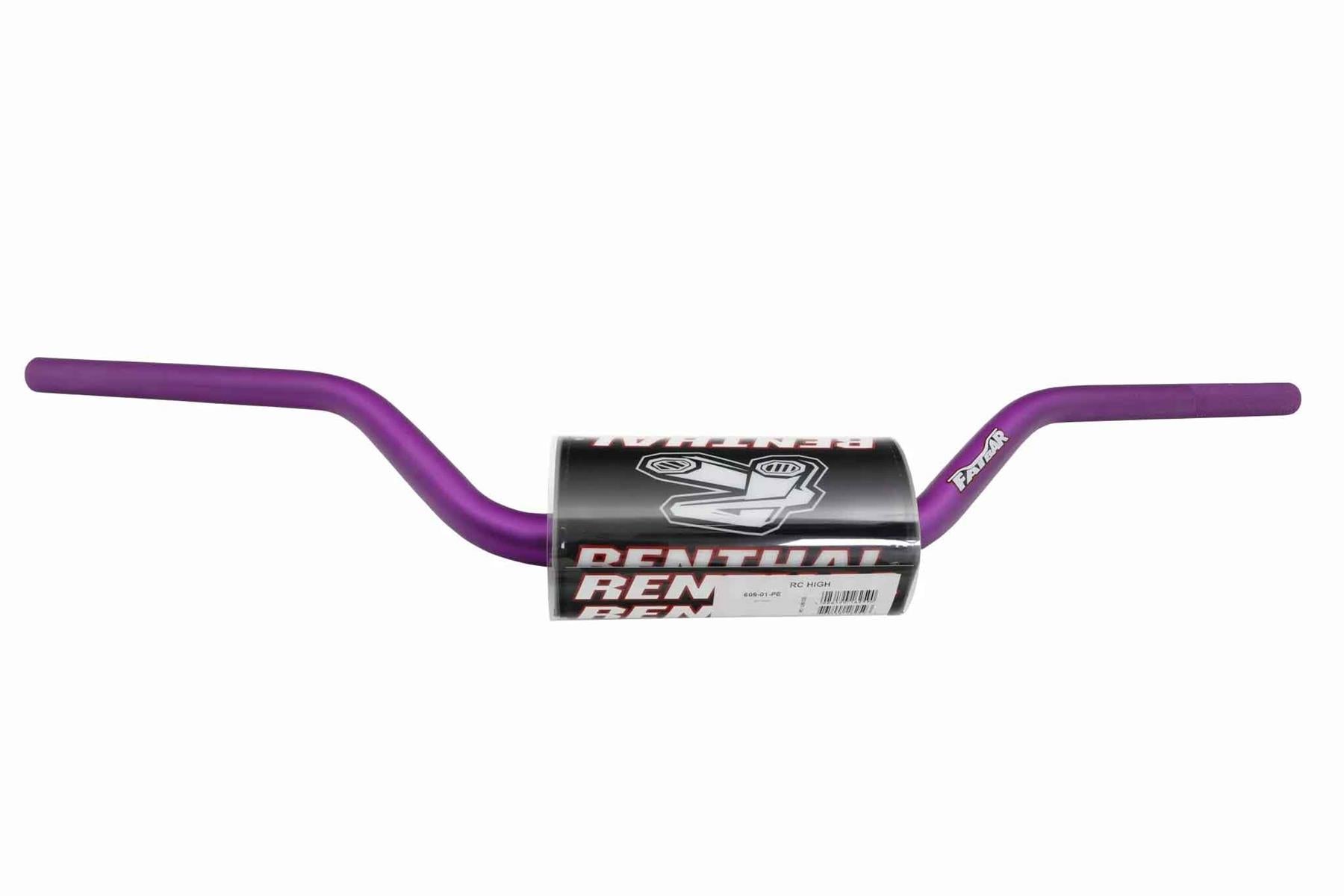

Renthal Fat Bar Fatbar Handlebars Honda Kawasaki Purple 609 RC High
Couldn't load pickup availability
Description
Features
The championship proven Renthal® Fatbar® continues to set the industry standard in an unbraced tapered mx handlebar. The oversized (1-1/8in | 28.6mm) clamping diameter uses computer aided profiling, tapering down to (7/8in | 22.2mm) to accept standard controls. Engineered from Renthal's exclusive 7010 T6 aluminum, specially formulated to reduce vibration and provide superior strength.
The Renthal MX Fatbar provides that signature flex character desired by many top atheltes around the globe and is fitted as OE equipment by Honda, Kawasaki and Suzuki.
Key Facts
1 1/8" (28.6mm) large diameter clamping area
Tapered wall construction to 7/8"; (22.2mm) allows fitment of standard grips and controls
Braceless design
7010 T6 Aluminium. Renthal has exclusive rights to this specifically developed alloy, for the manufacture of handlebars.
Shot peened surface finish to help prevent fatigue failure
Knurled grip area increases bonding between bars and grips
No Kurling in clamping area as this could cause a stress riser and lead to fatigue failure - Anodising; a 15 step anodising process forms an integral coating giving protection against corrosion
Laser etched positioning grid
Available in a variety of bends and colours to offer a custom fit on the bike
| Bar Dimensions | |
|---|---|
| Width / Dim A | 802 |
| Height / Dim B | 120 |
| Rise / Dim C | 84 |
| Clamping Width / Dim D | 150 |
| Sweep / Dim E | 56 |
| Control Length / Dim F | 190 |
| Dim G | 132 |
| Height / Dim Bv | 120 |
| Mounting Diameter | 28.6mm / 1 1/8" |
