Description

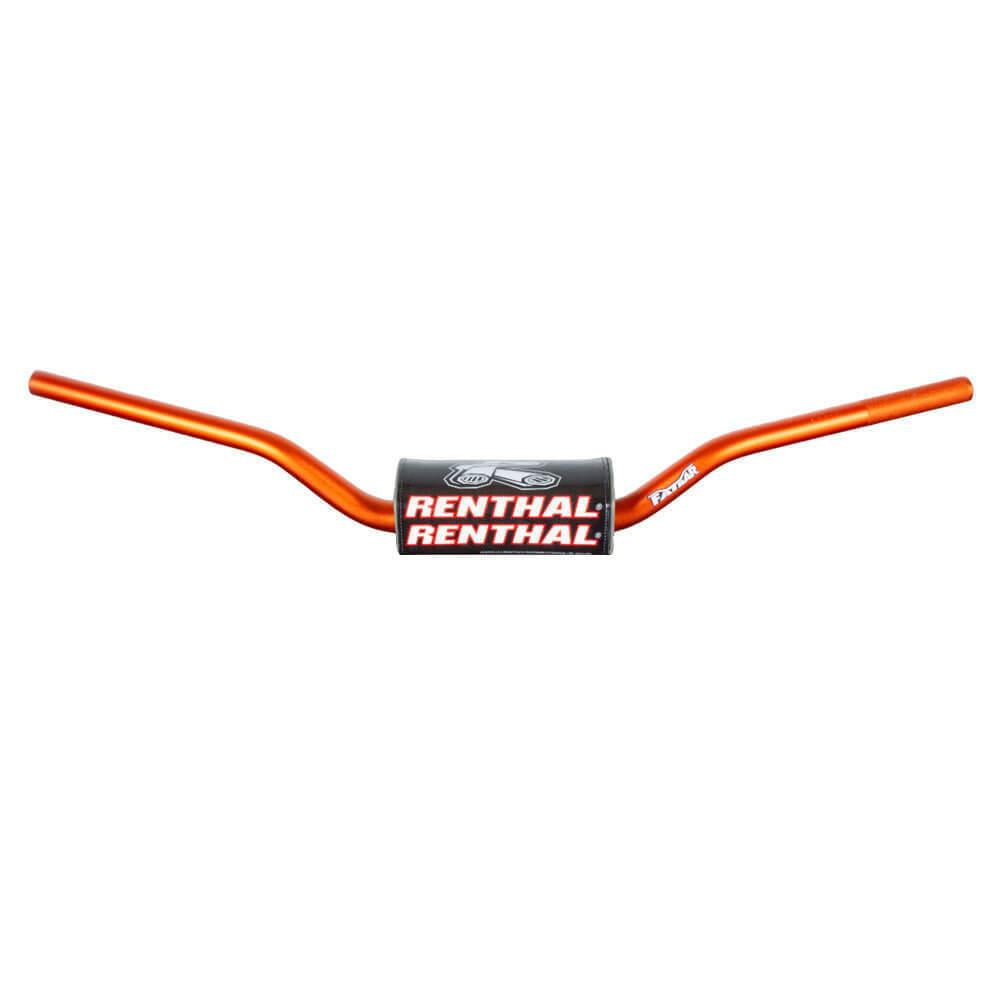

The championship proven Renthal® Fatbar® continues to set the industry standard in an unbraced tapered mx handlebar. The oversized (1-1/8in | 28.6mm) clamping diameter uses computer aided profiling, tapering down to (7/8in | 22.2mm) to accept standard controls. Engineered from Renthal's exclusive 7010 T6 aluminum, specially formulated to reduce vibration and provide superior strength.

The Renthal MX Fatbar provides that signature flex character desired by many top atheltes around the globe and is fitted as OE equipment by Honda, Kawasaki and Suzuki.

Bar Dimensions
Width / Dim A	819
Height / Dim B(m)	100
Rise / Dim C	58
Clamping Width / Dim D	80
Sweep / Dim E	47
Control Length / Dim F	211
Dim G	110
Height / Dim Bv	100
Mounting Diameter	28.6mm / 1+1/8"

APPLICATION
Beta EVO 125 2009-2012
Beta REV3 125 (520 conv.) 2005-2008
Beta REV3 200 2000-2008
Beta REV3 250 2000-2008
Beta REV3 270 2000-2008
Beta TECHNO 200 1999
Beta TECHNO 250 1999
Beta TECHNO 270 1999
Beta EVO-2 250 2009-2012
Beta EVO-4 250 2009-2012
Beta EVO-4 300 2009-2012
Beta Rev 80 2008-2012
Beta Trial EVO 125 2T 2023
Beta Trial EVO 200 2T 2023
Beta Trial EVO 250 2T 2023
Beta Trial EVO 300 2T 2012-2023
Beta Trial EVO 300 4T 2022
Gas Gas Trials 125 1992-2001
Gas Gas Trials 160 1992-2001
Gas Gas Trials 200 1992-2001
Gas Gas 249 TO 320 Trials 1989-2001
Gas Gas Trials Pro 125(420 CONV.) 2002-2015
Gas Gas Trials Pro 200 2002-2011
Gas Gas Trials Pro 250 2002-2015
Gas Gas Trials Pro 280 TO 300 2002-2015
Gas Gas TXE 2019
Gas Gas TXT 125 Racing 2017-2018
Gas Gas TXT 125 Racing 2021
Gas Gas TXT 250 Racing 2017-2019
Gas Gas TXT 250 Racing 2021
Gas Gas TXT 280 Racing 2017-2018
Gas Gas TXT 280 Racing 2021
Gas Gas TXT 300 Racing 2017-2019
Gas Gas TXT 300 Racing 2021
Gas Gas TXT GP Racing 250 2022-2025
Gas Gas TXT GP Racing 280 2022-2025
Gas Gas TXT GP Racing 300 2022-2025
Gas Gas TXT GP 125 2018
