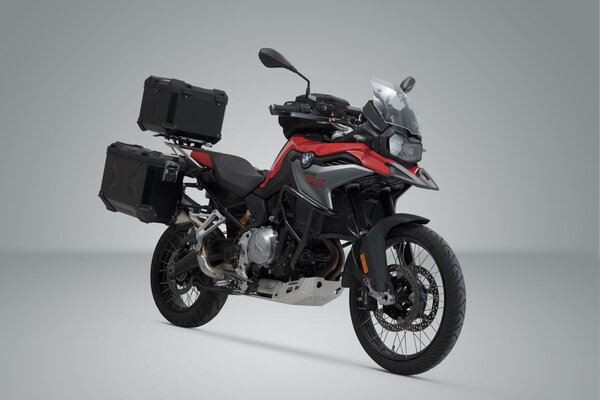

SW-Motech TRAX ADV Full Luggage System Black Kit Stainless Steel Type Rails For BMW F 850 GS ABS 2018-2023

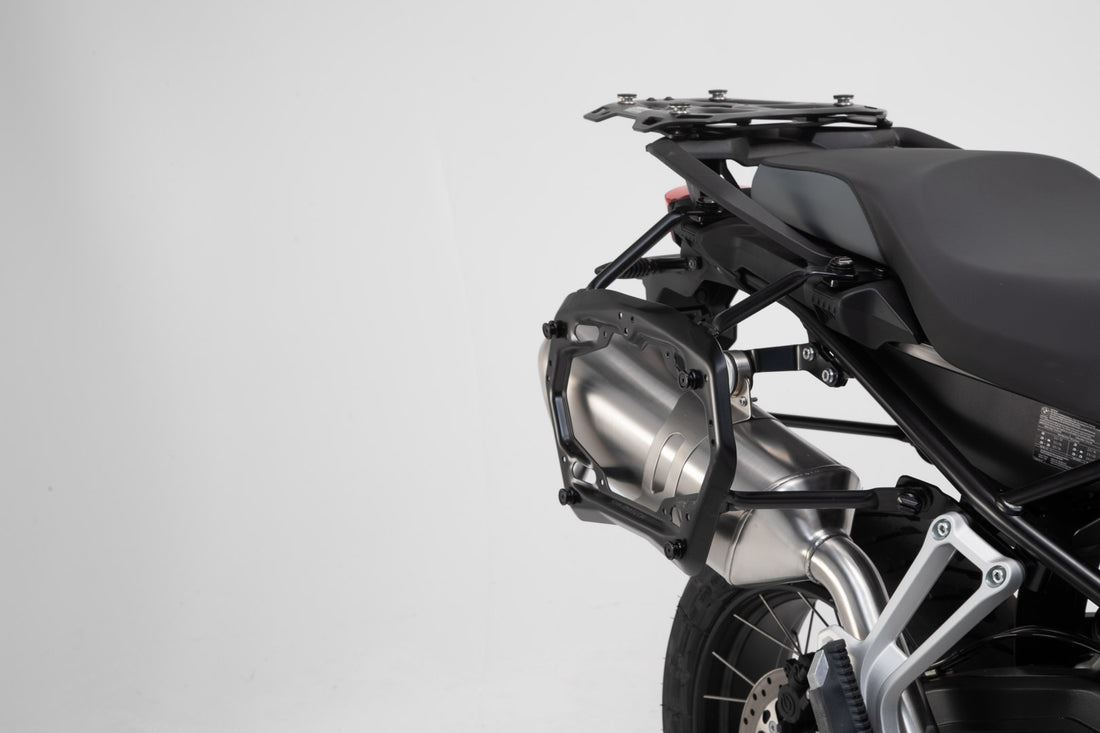

PRO Side carrier

Extremely durable due to its optimized shape and 2.5 mm thick steel

Perfect fit, designed to fit close to the bike

Fully removable with newly developed, even more robust quick-release fasteners

Optional anti-theft protection available

For permanent mounting, quick-release fasteners can be replaced with standard parts (M8)

Numerous functional bores, compatible with the RotopaX system among others

Simple mounting on original mounting points

Powerful corrosion protection thanks to powder coating

Secure hold for TRAX, AERO and NANUK side cases and SysBag 15 and SysBag 30 with adapter plate

Details

Material: Steel

Surface: powder coated

Color: black

Width built onto motorcycle: 53,0 cm / 20.9 in

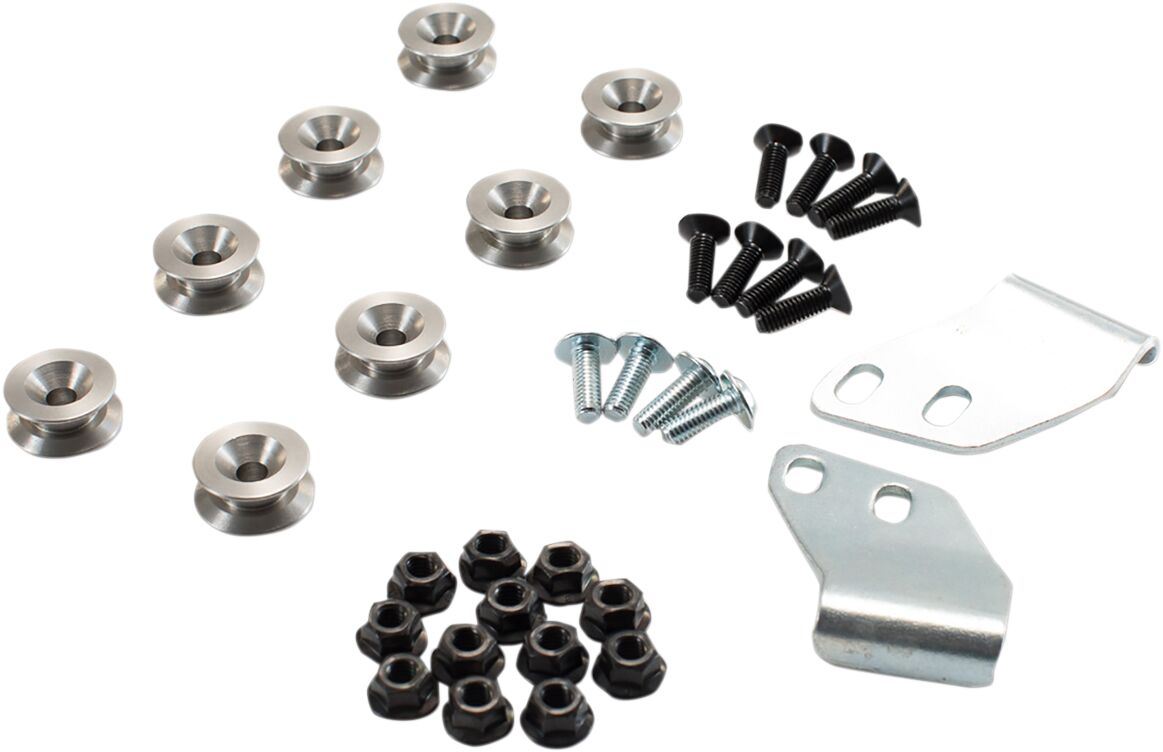

Adapter kit for PRO side carrier

Adapter kit for attaching a TRAX or NANUK side case to an SW-MOTECH PRO side carrier

Mounted on to the existing holes of the SW-MOTECH PRO side carrier

For left and right sides

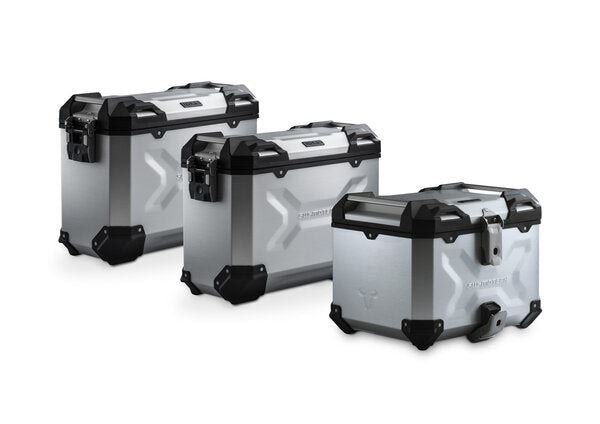

TRAX ADV L Aluminium case

Model for the left side of the motorcycle

Protection against oxidation and abrasion thanks to black powder coating, easy to clean surface

Sturdy and watertight side case made from aluminium

Large chamfer on sides for plenty of ground clearance for cornering, additional protection from glass fiber reinforced plastic corner caps

Robot-guided welding and self-piercing riveting prevent dampness from getting in

Even when loaded, completely removable lid with quick-release fastener

4 large tie-downs integrated into the lid design (e. g. for a tent or accessory bag)

High stability thanks to the embossed patterns, welded edges and pre-installed retaining rail

Hinges made from stainless steel, handles made from anodized aluminum

Lid limiters provide additional stability when using extra luggage on the lid

Exchangeable cover gasket

The membrane makes it easy to open the lid, even in case of extreme pressure and temperature fluctuations

Quick mounting on to all PRO and EVO luggage carriers (adapters sold separately)

Details

Material: Aluminum

Material strength: 0,15 cm / 0.06 in

Surface: powder coated

Color: black

Size: 49,0 x 28,0 x 37,0 cm / 19.3 x 11.0 x 14.6 in

Total Weight: 5,4 kg / 11.9 lb

Total Volume: 45,0 l

TRAX ADV M Aluminium case

Model for the right side of the motorcycle

Protection against oxidation and abrasion thanks to black powder coating, easy to clean surface

Sturdy and watertight side case made from aluminium

Large chamfer on sides for plenty of ground clearance for cornering, additional protection from glass fiber reinforced plastic corner caps

Robot-guided welding and self-piercing riveting prevent dampness from getting in

Even when loaded, completely removable lid with quick-release fastener

4 large tie-downs integrated into the lid design (e. g. for a tent or accessory bag)

High stability thanks to the embossed patterns, welded edges and pre-installed retaining rail

Hinges made from stainless steel, handles made from anodized aluminum

Lid limiters provide additional stability when using extra luggage on the lid

Exchangeable cover gasket

The membrane makes it easy to open the lid, even in case of extreme pressure and temperature fluctuations

Quick mounting on to all PRO and EVO luggage carriers (adapters sold separately)

Details

Material: Aluminum

Surface: powder coated

Color: black

Size: 49,0 x 23,0 x 37,0 cm / 19.3 x 9.1 x 14.6 in

Total Weight: 5,1 kg / 11.2 lb

Total Volume: 37,0 l

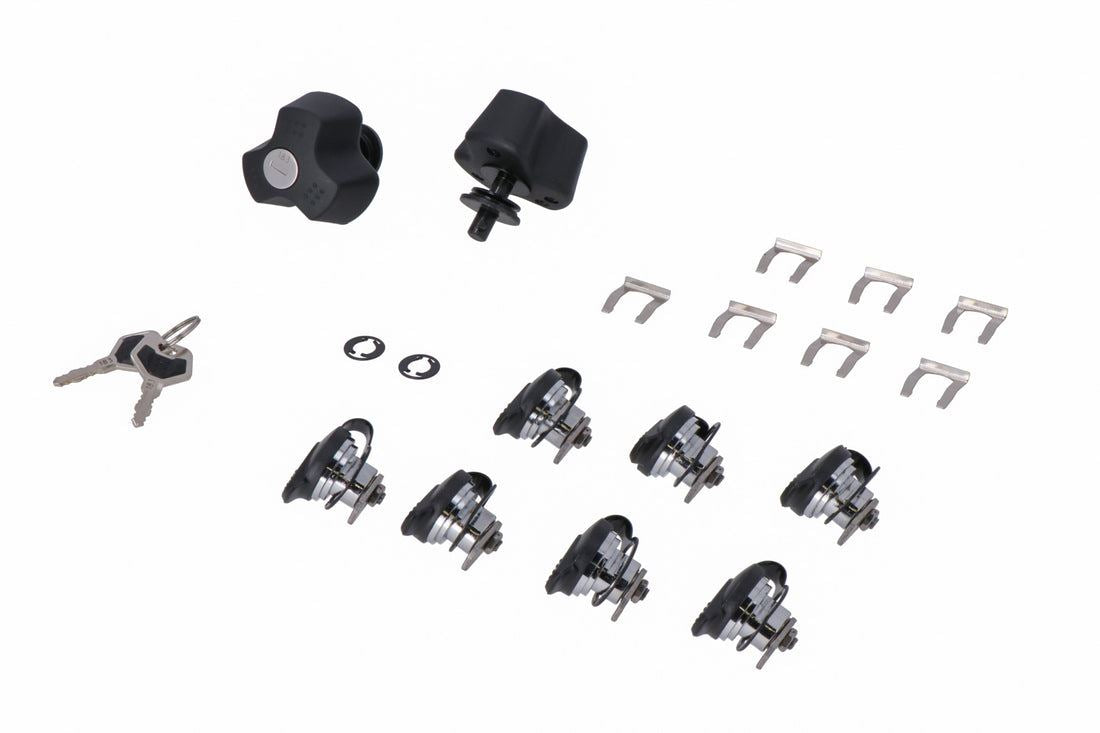

TRAX lock set

Matching locks

Compatible with side cases and top cases from the TRAX ION and TRAX ADV series

Anti-theft protection for PRO side carriers

Anti-theft protection for PRO side carrier

With the anti-theft protection, any two quick release fasteners can be replaced

Set for right and left PRO side carrier, consisting of 2 matching locks and 2 identical keys

Multi-tool key chain attachment

Multitool as practical key chain

Quick-release fastener opener for EVO and PRO side carriers

Hex key (14 mm) - ideal for many motorcycle mirrors

Hex keys in four additional sizes (8, 10, 12, 13 mm)

Bottle opener

Key chain eyelet

With laser-etched SW-MOTECH logo

Details

Material: Stainless steel

Surface: brushed

Color: silver

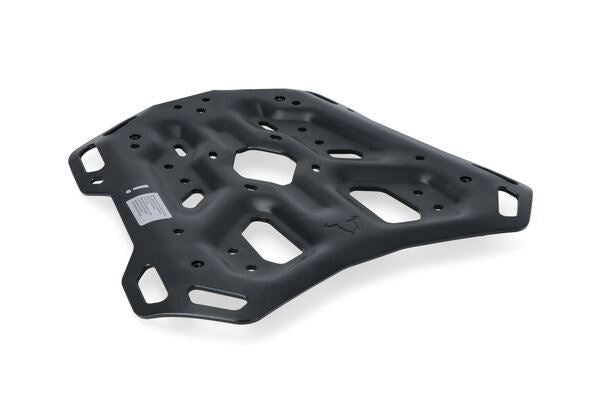

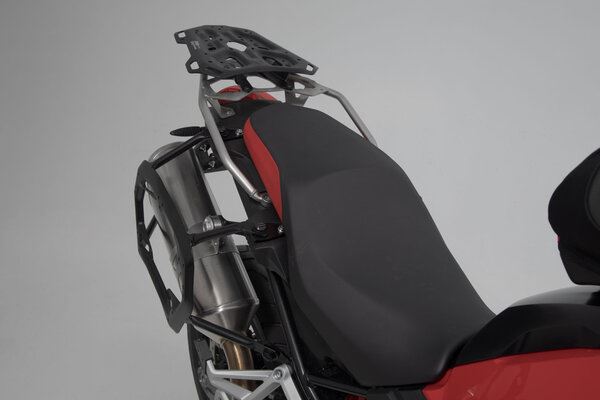

ADVENTURE-RACK Rack for stainless steel rack

The ADVENTURE-RACK replaces the original plastic plate and is mounted directly onto the stainless steel BMW rack

Extremely robust rack for long tours and off-road rides

Exclusive manufacturing processes and its optimized shape lend an extra dose of stability to the ADVENTURE-RACK

Its extreme durability during vibrations, impacts and high weight was tested in the lab and off-road under harshest conditions

Multiple functional bores: for TRAX top cases. SysBag15/30 with adapter plate are available separately with the appropriate adapter kit

Adapter kits for attaching top cases by other manufacturers (Givi Monokey and Monolock, Krauser, Shad I und II) also available

Easy rigging of luggage on numerous, large lashing eyes, threading of 25 mm fasteners possible

Especially large contact surface (Width: 32.9 cm at the front, 22.5 cm at the back, Length: 30.3 cm)

Easy installation on original attachment points with bike-specific attachment elements

Effective corrosion protection from black powder coating

Made of light but sturdy 4mm-thick aluminum alloy

Details

Material: Aluminum

Material strength: 0,40 cm / 0.16 in

Surface: powder coated

Color: black

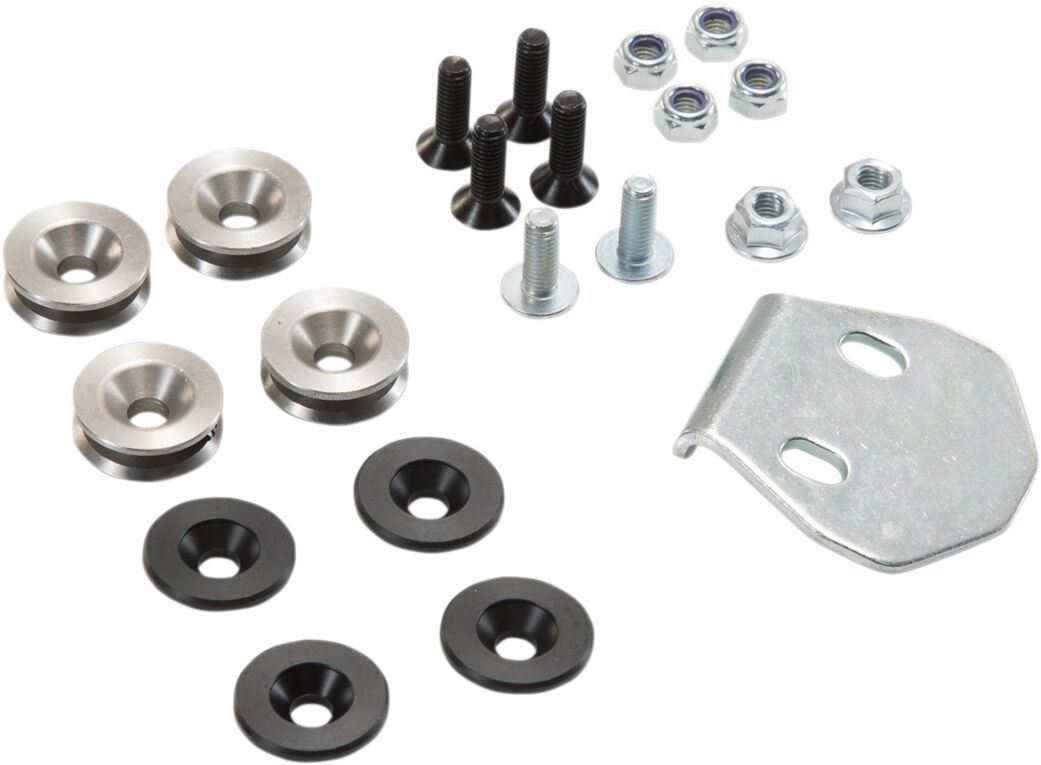

Adapter kit for ADVENTURE-RACK

Adapter kit for attaching a TRAX top case onto an ADVENTURE-RACK

Compatible with TRAX ADV, TRAX ION and TRAX EVO top cases by SW-MOTECH

Easy mounting: the adapter kit is screwed onto the rack

Details

Material: Polyamide / Stainless steel

Color: black / silver

TRAX ADV Top case

Protection from corrosion and wear due to black powder coating

Premium top case made from 1.5 mm-thick aluminum

Hinged lid with lid limiter, stainless steel latch, sturdy carrying handles and integrated mounting points

100% water- and dustproof due to robotic welding and punch rivet technology

Theft protection: Case lid and case can be locked when on the carrier

High stability thanks to the visually appealing and functional embossed sheet metal

Additional protection from corners made of glassfiber-reinforced polyamide

Easy to clean surface

Details

Material: Aluminum

Material strength: 0,15 cm / 0.06 in

Surface: powder coated

Color: black

Size: 41,0 x 34,0 x 33,0 cm / 16.1 x 13.4 x 13.0 in

Total Weight: 4,8 kg / 10.6 lb

Total Volume: 38,0 l

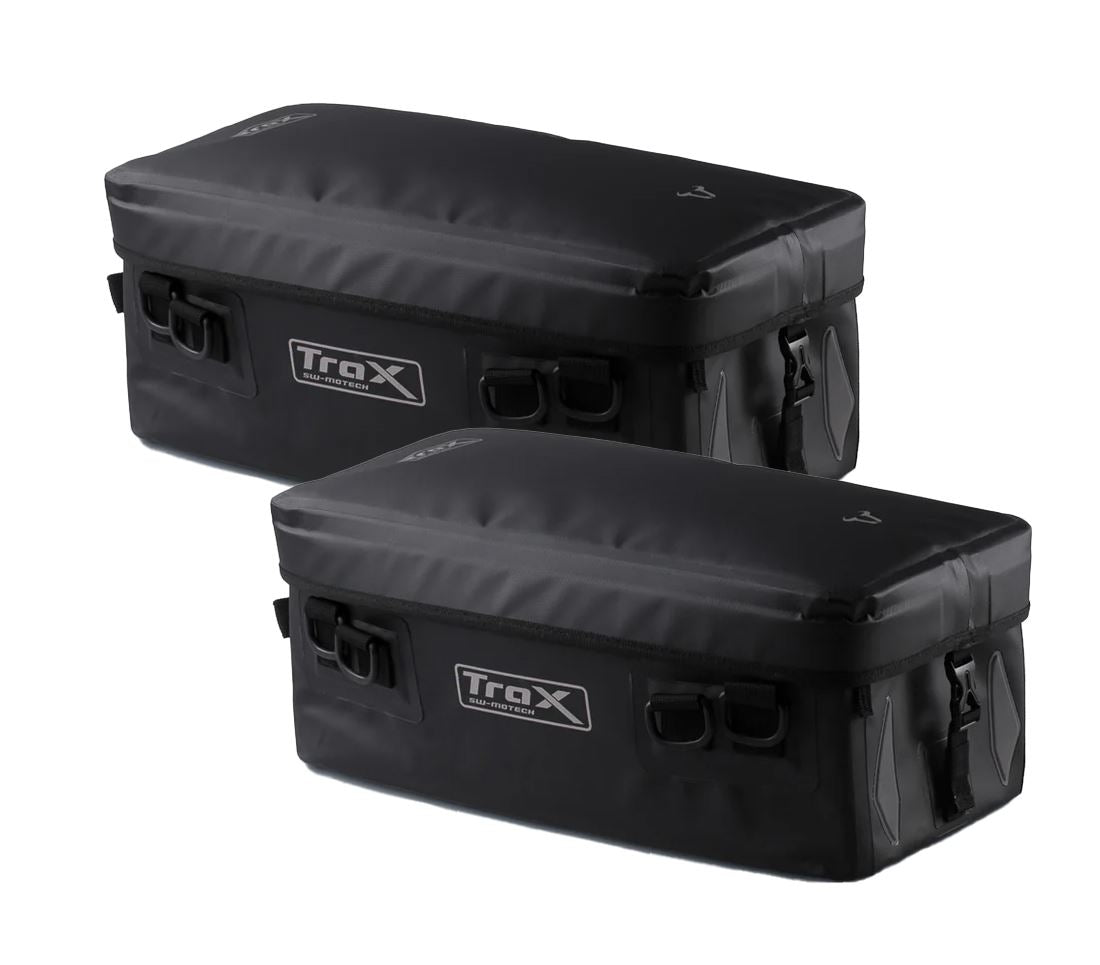

TRAX M/L expansion bag x2

Waterproof accessory bag that can be lashed onto side cases

For side cases from SW-MOTECH and other brands (such as BMW, for ex.)

15 litres of additional storage, padded

Circumferential, waterproof zipper enables quick access to the entire contents

Overlapping lid is secured using plastic clips

Divider for custom organisation of the interior

Made of robust, easy to clean material

Sleek design with reflective details

Sturdy carrying handle

8 D-rings offer flexible lashing options (spacing of the inner D-rings: approx. 24 cm, spacing of the outer D-rings: approx. 32 cm)

Details

Material: 500D Polyester

Color: black

Size: 45,0 x 15,0 x 22,0 cm / 17.7 x 5.9 x 8.7 in

Total Volume: 15,0 l

Included in delivery

• 1 x TRAX ADV M Aluminium case, 37,00 l, black, right
• 1 x TRAX ADV L Aluminium case, 45,00 l, black, left
• 1 x TRAX ADV Top case, 38,00 l, black
• 2 x PRO Side carrier
• 2 x Adapter kit for PRO side carrier
• 2 x Anti-theft protection for PRO side carriers
• 1 x ADVENTURE-RACK Rack for stainless steel rack
• 1 x Adapter kit for ADVENTURE-RACK
• 3 x TRAX lock set
• 2 x TRAX M/L expansion bag
• 6 x Lid limiter
• 3 x Storage bag
• 1 x Multi-tool key chain attachment
• Mounting instructions
• Mounting material

Details

• Total Weight: 15,3 kg / 33.7 lb
• Total Volume: 150,0 l
