SW-Motech TRAX ADV Full Luggage System Silver Kit For BMW R 1200 GS ABS 2004-2012
Couldn't load pickup availability
Description
Adventure set luggage
This kit includes all essential mounting hardware, along with durable cases and bags, ensuring you have everything you need for a secure and hassle-free installation.
This set is the all-round, care-free pack for any tour. The water and dust-tight TRAX ADV premium aluminum case, two side cases and a top case offer your luggage the best protection. The bike-specific development of the removable EVO side carrier and the ALU-RACK guarantee a perfect fit and secure hold for aluminium cases. Our robust TRAX ADV aluminium cases convince through their stability, water resistance, dust seal, refined look, well thought out features and lots of accessories. To provide even more storage, this Adventure set comes with two TRAX M/L accessory bags. These are fastened to the side cases, are water-tight and the contents can be especially quickly accessed.

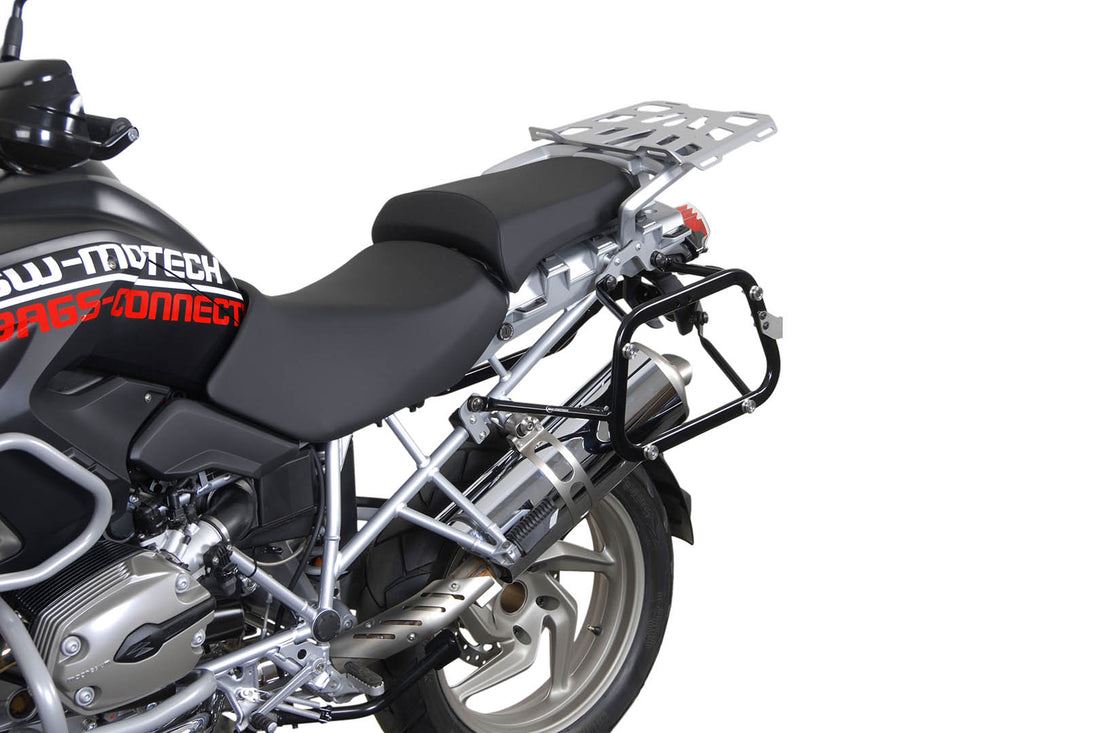

EVO Side carrier
Detachable carrier for use with almost all common case systems
Attachment and removal within seconds with quick-release fasteners at inconspicuous attachment points
The SW-MOTECH case adapter makes it suitable for TRAX, AERO, Givi/Kappa, Krauser, Hepco & Becker, Shad cases
Made of oval round tube close to the vehicle
High functionality and stability
Details
Material: Steel
Surface: powder coated
Color: black
Width built onto motorcycle: 51,0 cm / 20.1 in

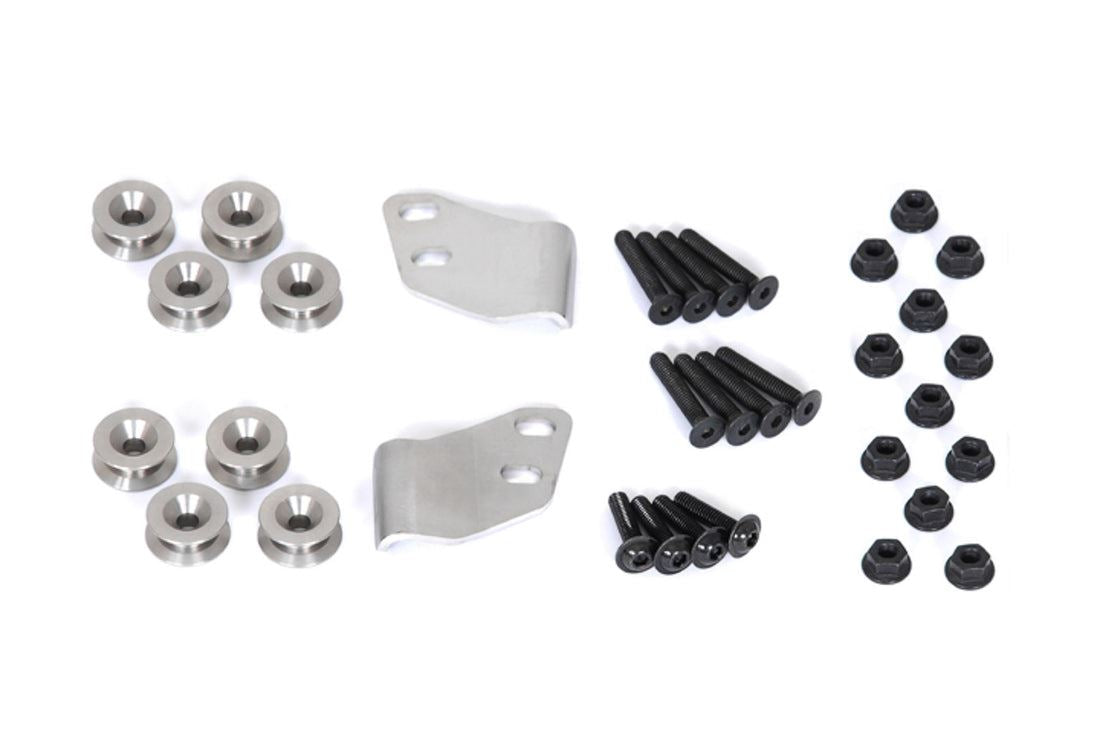

Adapter kit for EVO side carriers
Adapter kit for attaching TRAX ADV/ION/EVO or NANUK side cases to SW-MOTECH EVO side carriers
Mounted on to the existing holes of the SW-MOTECH EVO side carrier
For left and right sides

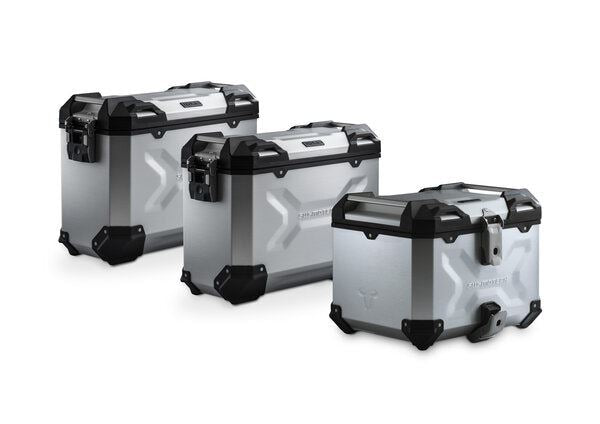

TRAX ADV M Aluminium case
Model for the left side of the motorcycle
Protection against oxidation and abrasion thanks to anodized finish
Sturdy and watertight side case made from aluminium
Large chamfer on sides for plenty of ground clearance for cornering, additional protection from glass fiber reinforced plastic corner caps
Robot-guided welding and self-piercing riveting prevent dampness from getting in
Even when loaded, completely removable lid with quick-release fastener
4 large tie-downs integrated into the lid design (e. g. for a tent or accessory bag)
High stability thanks to the embossed patterns, welded edges and pre-installed retaining rail
Hinges made from stainless steel, handles made from anodized aluminum
Lid limiters provide additional stability when using extra luggage on the lid
Exchangeable cover gasket
The membrane makes it easy to open the lid, even in case of extreme pressure and temperature fluctuations
Details
Material: Aluminum
Surface: anodized
Color: silver
Size: 49,0 x 23,0 x 37,0 cm / 19.3 x 9.1 x 14.6 in
Total Weight: 5,1 kg / 11.2 lb
Total Volume: 37,0 l
TRAX ADV L Aluminium case
Model for the right side of the motorcycle
Protection against oxidation and abrasion thanks to anodized finish
Sturdy and watertight side case made from aluminium
Large chamfer on sides for plenty of ground clearance for cornering, additional protection from glass fiber reinforced plastic corner caps
Robot-guided welding and self-piercing riveting prevent dampness from getting in
Even when loaded, completely removable lid with quick-release fastener
4 large tie-downs integrated into the lid design (e. g. for a tent or accessory bag)
High stability thanks to the embossed patterns, welded edges and pre-installed retaining rail
Hinges made from stainless steel, handles made from anodized aluminum
Lid limiters provide additional stability when using extra luggage on the lid
Exchangeable cover gasket
The membrane makes it easy to open the lid, even in case of extreme pressure and temperature fluctuations
Details
Material: Aluminum
Material strength: 0,15 cm / 0.06 in
Surface: anodized
Color: silver
Size: 49,0 x 28,0 x 37,0 cm / 19.3 x 11.0 x 14.6 in
Total Weight: 5,4 kg / 11.9 lb
Total Volume: 45,0 l

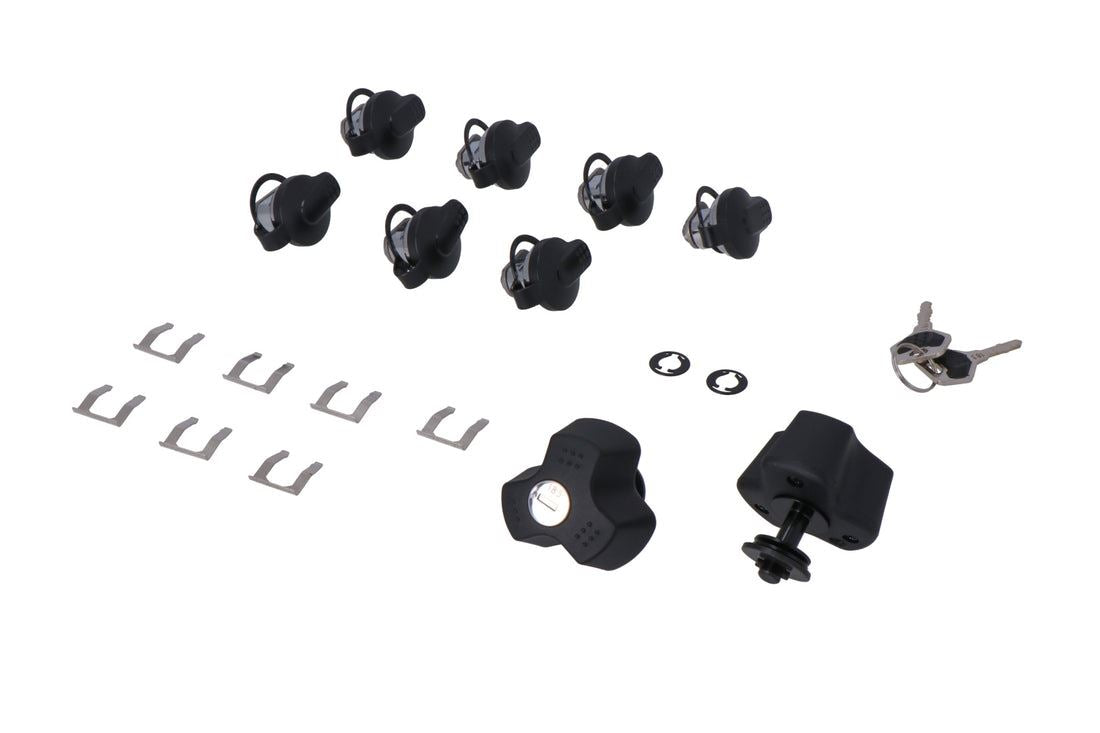

TRAX lock set
Matching locks
Compatible with side cases and top cases from the TRAX ION and TRAX ADV series
Anti-theft protection for EVO side carriers
Anti-theft protection for EVO side carriers
With the anti-theft protection, any two quick release fasteners can be replaced
Set for right and left EVO side carriers, consisting of 2 matching locks and 2 identical keys

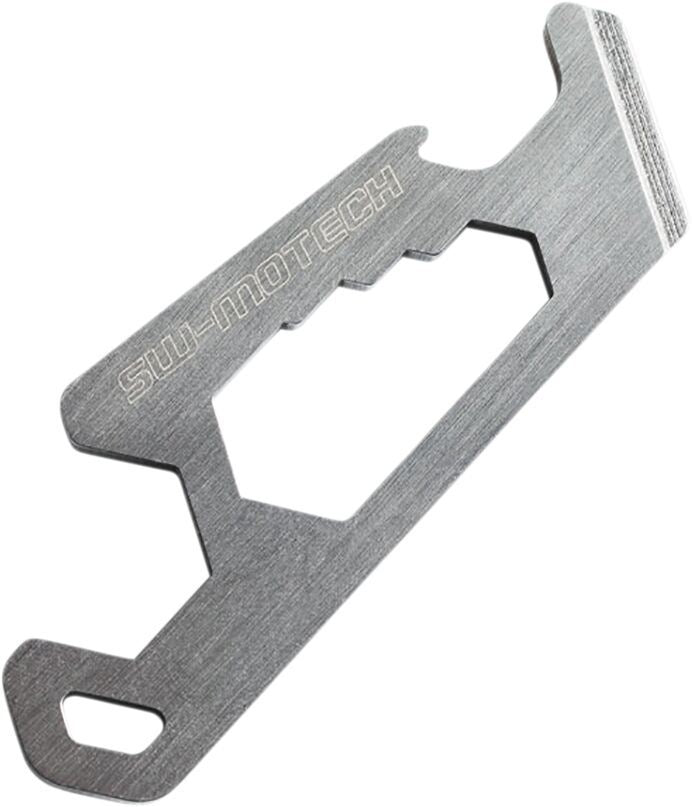

Multi-tool key chain attachment
Multitool as practical key chain
Quick-release fastener opener for EVO and PRO side carriers
Hex key (14 mm) - ideal for many motorcycle mirrors
Hex keys in four additional sizes (8, 10, 12, 13 mm)
Bottle opener
Key chain eyelet
With laser-etched SW-MOTECH logo
Details
Material: Stainless steel
Surface: brushed
Color: silver

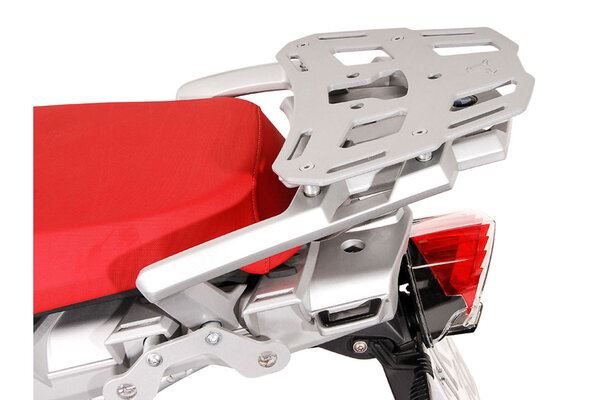

ALU-RACK Rack
Bike-specific development and high-precision CNC production process ensure the best fit
Perfectly suited to the motorcycle's profile
Laser cut from aluminium alloy
Effective corrosion protection thanks to its powder coated surface
Can also be used in combination with PRO / EVO side carriers and TRAX side cases
Details
Material: Aluminum
Material strength: 0,60 cm / 0.24 in
Surface: powder coated
Color: silver

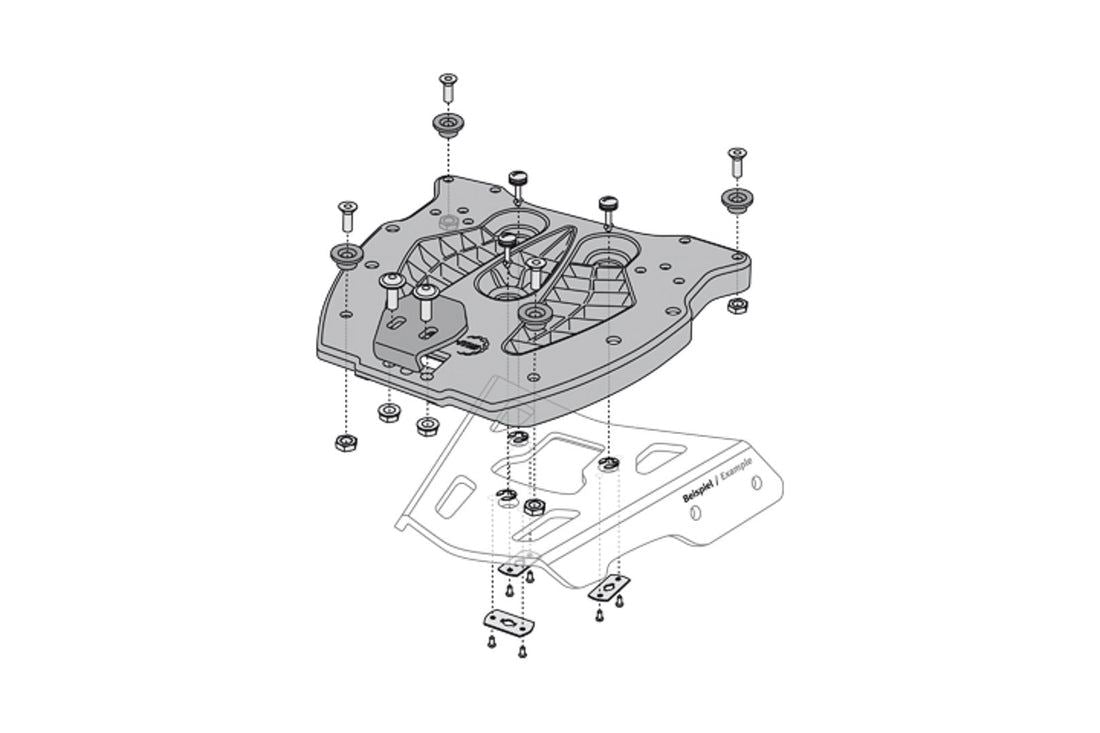

Adapter plate for ALU-RACK
For TRAX top case models
For attaching a top case to an ALU-RACK.
QUICK-LOCK quick-release fasteners allow you to mount and dismount within seconds
High strength thanks to reinforcement and three-point locking system
Made from extremely sturdy plastic
Details
Material: Plastic
Color: black
TRAX ADV Top case
Protection against oxidation and abrasion thanks to anodized finish
Premium top case made from 1.5 mm-thick aluminum
Hinged lid with lid limiter, stainless steel latch, sturdy carrying handles and integrated mounting points
100% water- and dustproof due to robotic welding and punch rivet technology
Theft protection: Case lid and case can be locked when on the carrier
High stability thanks to the visually appealing and functional embossed sheet metal
Additional protection from corners made of glassfiber-reinforced polyamide
Easy to clean surface
Details
Material: Aluminum
Material strength: 0,15 cm / 0.06 in
Surface: anodized
Color: silver
Size: 41,0 x 34,0 x 33,0 cm / 16.1 x 13.4 x 13.0 in
Total Weight: 4,8 kg / 10.6 lb
Total Volume: 38,0 l

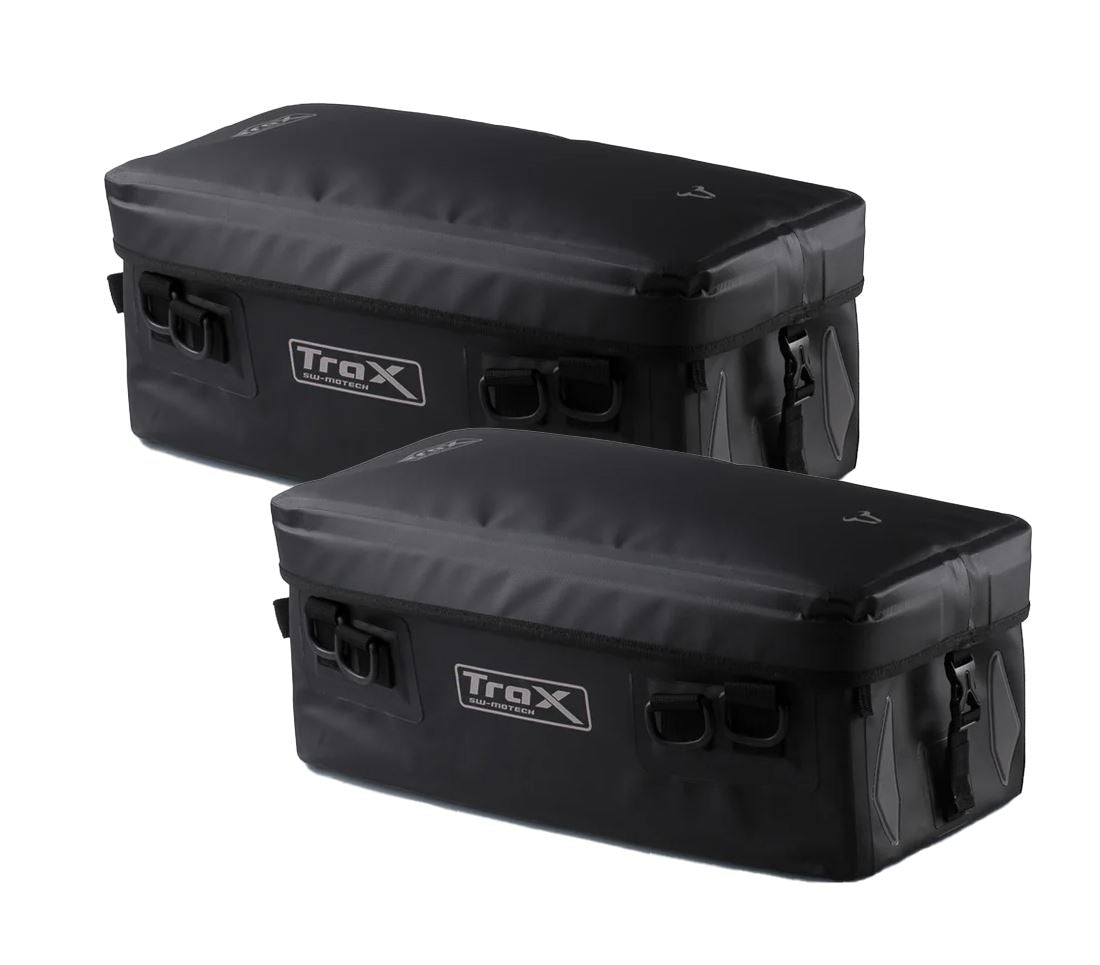

TRAX M/L expansion bag x2
Waterproof accessory bag that can be lashed onto side cases
For side cases from SW-MOTECH and other brands (such as BMW, for ex.)
15 litres of additional storage, padded
Circumferential, waterproof zipper enables quick access to the entire contents
Overlapping lid is secured using plastic clips
Divider for custom organisation of the interior
Made of robust, easy to clean material
Sleek design with reflective details
Sturdy carrying handle
8 D-rings offer flexible lashing options (spacing of the inner D-rings: approx. 24 cm, spacing of the outer D-rings: approx. 32 cm)
Details
Material: 500D Polyester
Color: black
Size: 45,0 x 15,0 x 22,0 cm / 17.7 x 5.9 x 8.7 in
Total Volume: 15,0 l
Included in delivery
- 1 x TRAX ADV Top case, silver, 38,00 l
- 1 x TRAX ADV M Aluminium case, silver, 37,00 l, left
- 1 x TRAX ADV L Aluminium case, silver, 45,00 l, right
- 2 x EVO Side carrier
- 2 x Adapter kit for EVO side carriers
- 2 x Anti-theft protection for EVO side carriers
- 1 x ALU-RACK Rack
- 1 x Adapter plate for ALU-RACK
- 3 x TRAX lock set
- 2 x TRAX M/L expansion bag
- 6 x Lid limiter
- 3 x Storage bag
- 1 x Multi-tool key chain attachment
- Mounting instructions
- Mounting material
Details
- Total Weight: 15,3 kg / 33.7 lb
- Total Volume: 150,0 l
APPLICATION
| BikeProducer | BikeModel | Year | BikeType | Country |
| BMW | R 1200 GS | 2009-2012 | R12 | ALL |
| BMW | R 1200 GS ABS | 2004-2012 | R12 | ALL |
